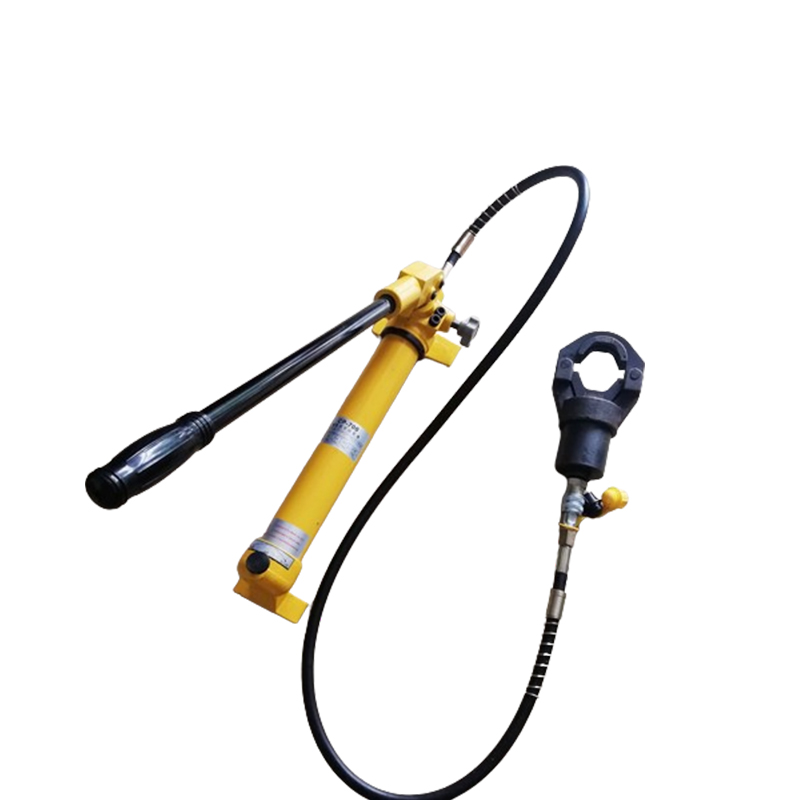

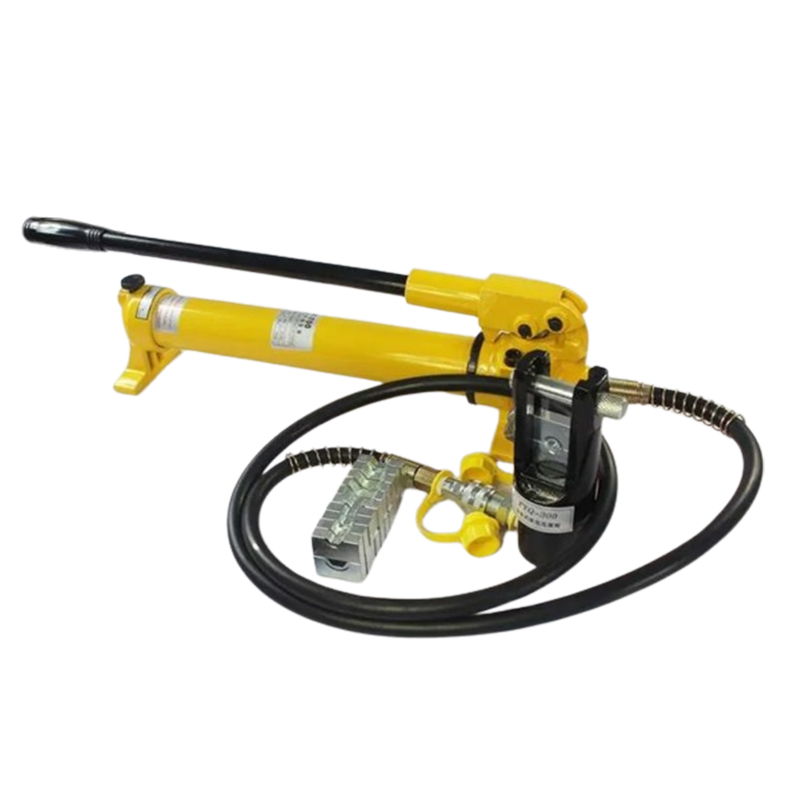

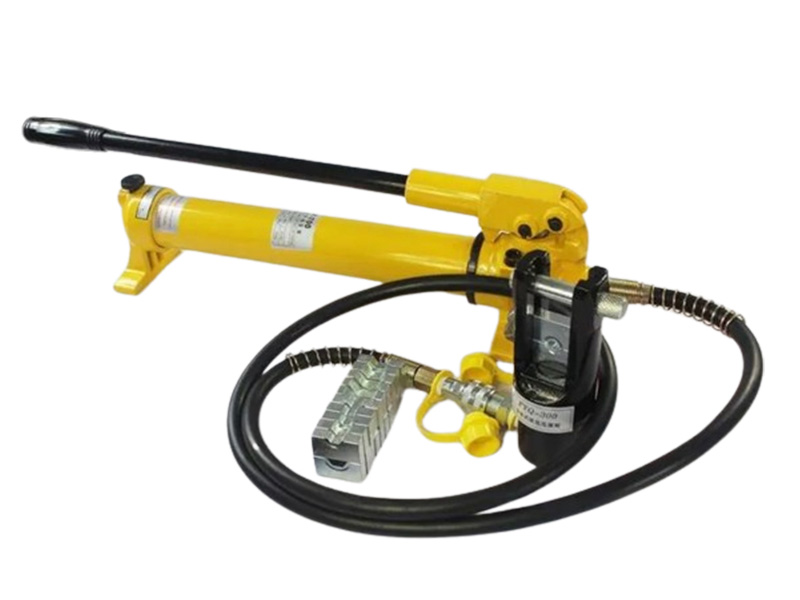

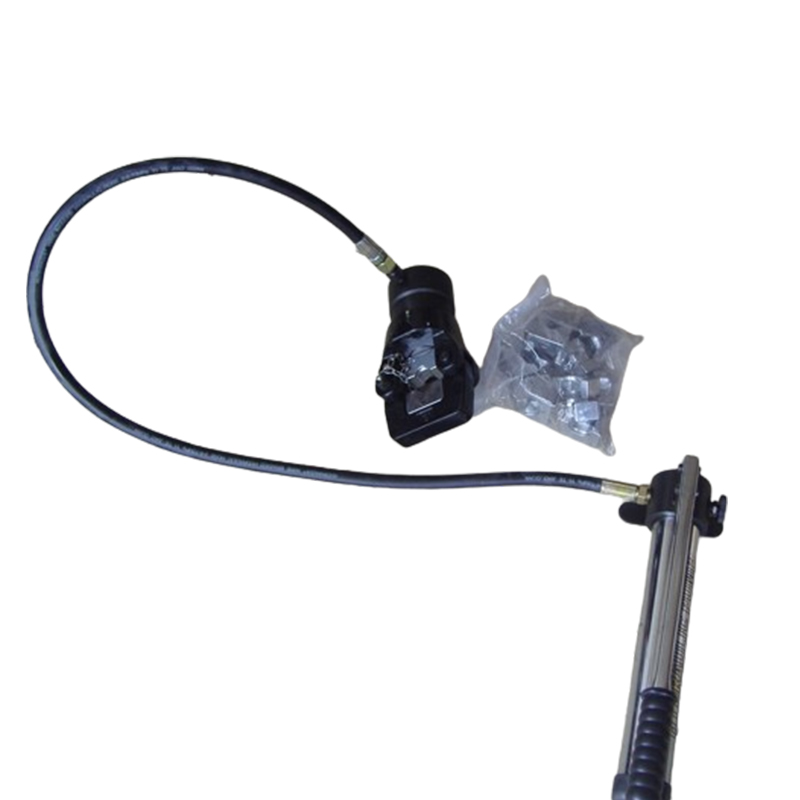

YAX-FYQ Split type pressing clamp

Shear Bending Tool Series

YAX-FYQ Split type pressing clamp

1. Suitable for indoor and outdoor engineering of power transmission and distribution rooms, various connection fittings, and professional use of overhead underground cables.
2. 10kV-500kV high-voltage cable sleeves, wire clamps, bare terminals, hexagonal crimping, tight and not easily detached, with good conductivity.
3. Adopting a split type, the working environment requirements are reduced, and the self weight is light. Manual pump, foot pump, or electric pump are required for operation.
4. Oil pipe joint with PT3/8 "thread.
5. 13 sets of molds.

    Features

    -Used for crimping wiring terminals or clamp tubes.
    -It must be equipped with a manual hydraulic pump or an electric oil pump for matching use.
    -Split structure, reduced working environment requirements, lightweight, and convenient to use.
    2yr35

    Use scope

    • -Used for crimping wiring terminals or clamp tubes.
    • -It must be equipped with a manual hydraulic pump or an electric oil pump for matching use.
    • -Split structure, reduced working environment requirements, lightweight, and convenient to use.

    Technical parameters

    Model

    Rated pressure (KN)

    Working stroke(mm)

    Crimping range (mm2)

    YAX-FYQ 240

    150

    20

    16-240

    YAX-FYQ 300

    160

    22

    16-300

    YAX-FYQ 400

    200

    22

    16-400

    YAX-FYQ 500

    250

    25

    25-500

    YAX-FYQ 630

    350

    28

    150-630

    YAX-FYQ 1000

    560

    36

    300-1000
