Hydraulic Puller Series
0102030405

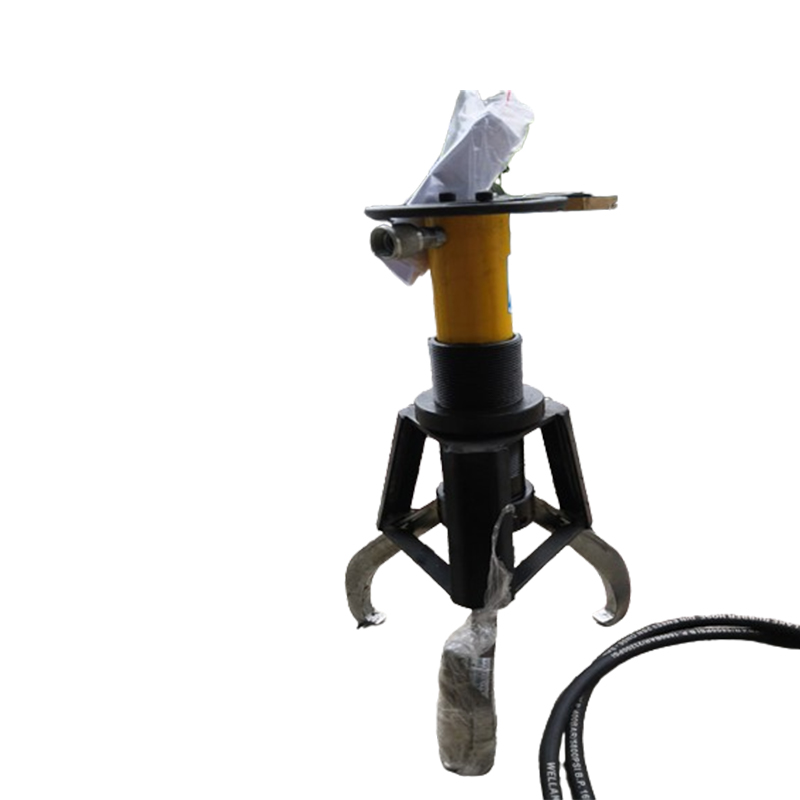

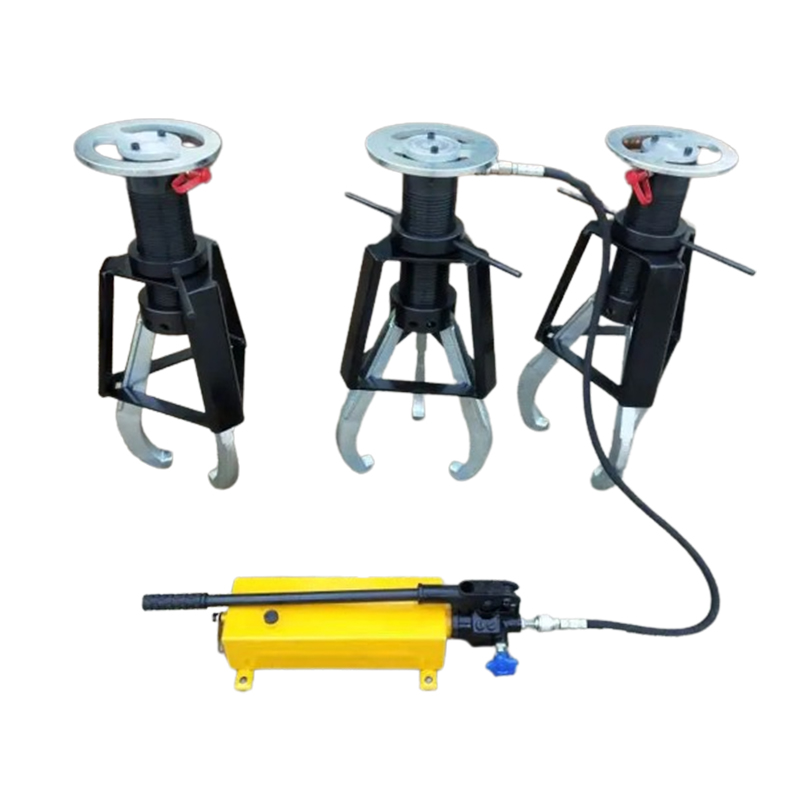

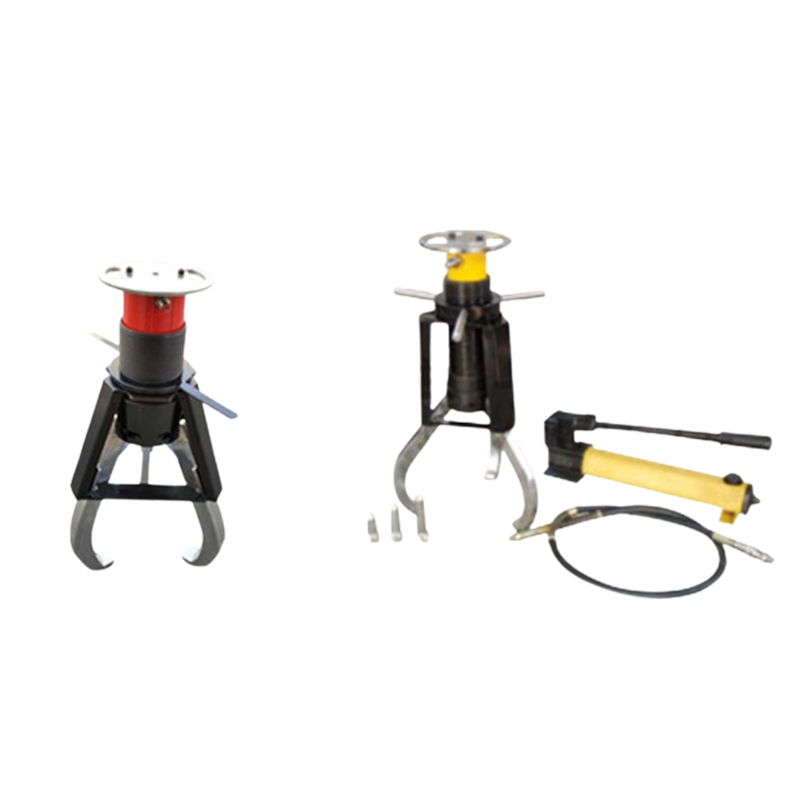

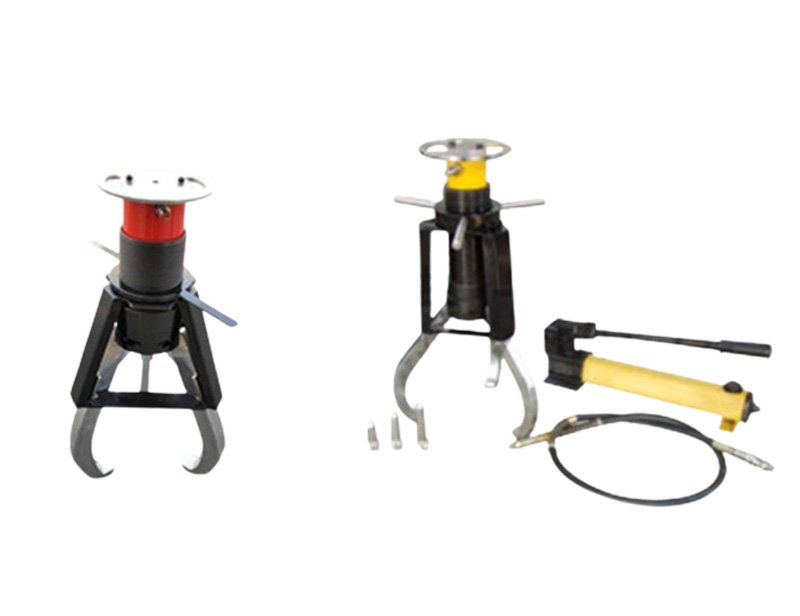

YAX-EPH Split type anti slip hydraulic puller
Parameter performance
Unique patented design of safety cage, which can firmly lock the workpiece, prevent slipping, and make work safer;
-Automatic centering, preventing off center loading, ensuring that the screw is always at the center of force, and extending its service life;
-Quickly control the puller through a T-shaped handle and safety cage, making operation more convenient;
Special shaped claws are more conducive to operating in narrow spaces;
Trapezoidal threaded screw, which is more labor-saving under high torque;
Hydraulic power system, with greater pulling force.
Features
- -Safety cage jaw retention system.
- -High force hydraulic system for effortless pulling of large components.
- -Slim tapered jaws for better gripping in tight spots.
- -Available in 2 and 3 jaws design.
- -More efficient pulling, as one man can do the job where manual pullers often require two operators.
Technical parameters
|
Jaws number |
Capacity(T) |
Model |
Cylinder |
Stroke |
Spread Min-Max (A) |
Maximum reach(B) |
Weight(Kg) |
|
2 jaws puller |
10 |
YAX-EPH-208 |
RC-106 |
152 |
19-304 |
203 |
10 |
|
10 |
YAX-EPH-208 |
RC-106 |
152 |
19-304 |
203 |
27 |
|
|
15 |
YAX-EPH-210 |
RC-1510 |
254 |
25-381 |
245 |
22 |
|
|
15 |
YAX-EPH-210 |
RC-1510 |
254 |
25-381 |
245 |
38 |
|
|
25 |
YAX-EPH-213 |
RC-2514 |
362 |
63-457 |
304 |
44 |
|
|
25 |
YAX-EPH-213 |
RC-2514 |
362 |
63-457 |
304 |
53 |
|
|
50 |
YAX-EPH-216 |
RC-5013 |
336 |
76-635 |
355 |
87 |
|
|
50 |
YAX-EPH-216 |
RC-5013 |
336 |
76-635 |
355 |
123 |
|
|
3 jaws puller |
10 |
YAX-EPH-108 |
RC-106 |
152 |
19-304 |
203 |
11 |
|
10 |
YAX-EPH-108 |
RC-106 |
152 |
19-304 |
203 |
28 |
|
|
15 |
YAX-EPH-110 |
RC-1510 |
254 |
25-381 |
245 |
23 |
|
|
15 |
YAX-EPH-110 |
RC-1510 |
254 |
25-381 |
245 |
39 |
|
|
25 |
YAX-EPH-113 |
RC-2514 |
362 |
63-457 |
304 |
48 |
|
|
25 |
YAX-EPH-113 |
RC-2514 |
362 |
63-457 |
304 |
57 |
|
|
50 |
YAX-EPH-116 |
RC-5013 |
336 |
76-635 |
355 |
91 |
|
|
50 |
YAX-EPH-116 |
RC-5013 |
336 |
76-635 |
355 |
127 |
