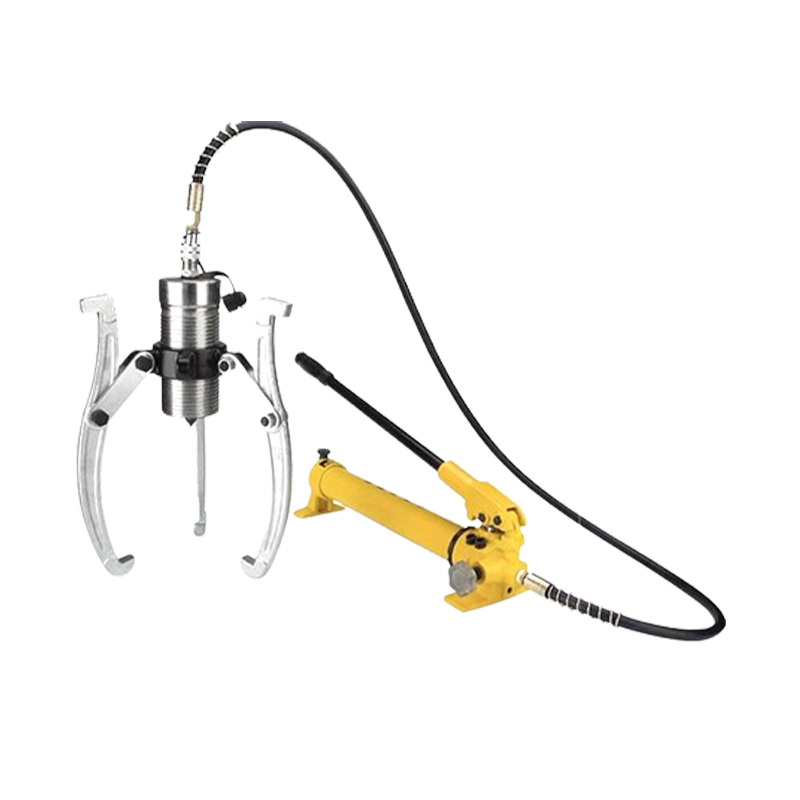

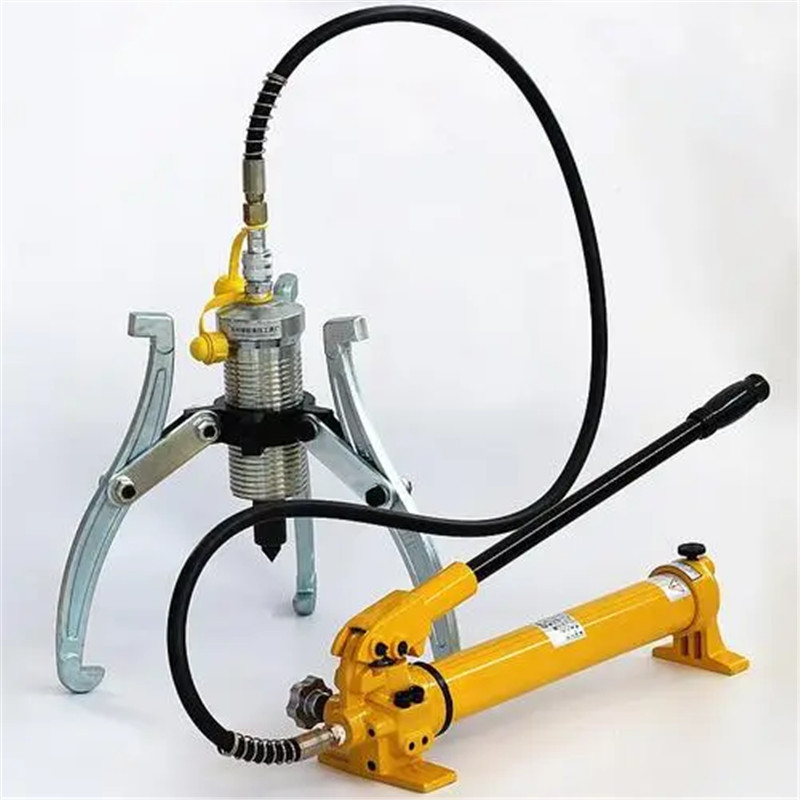

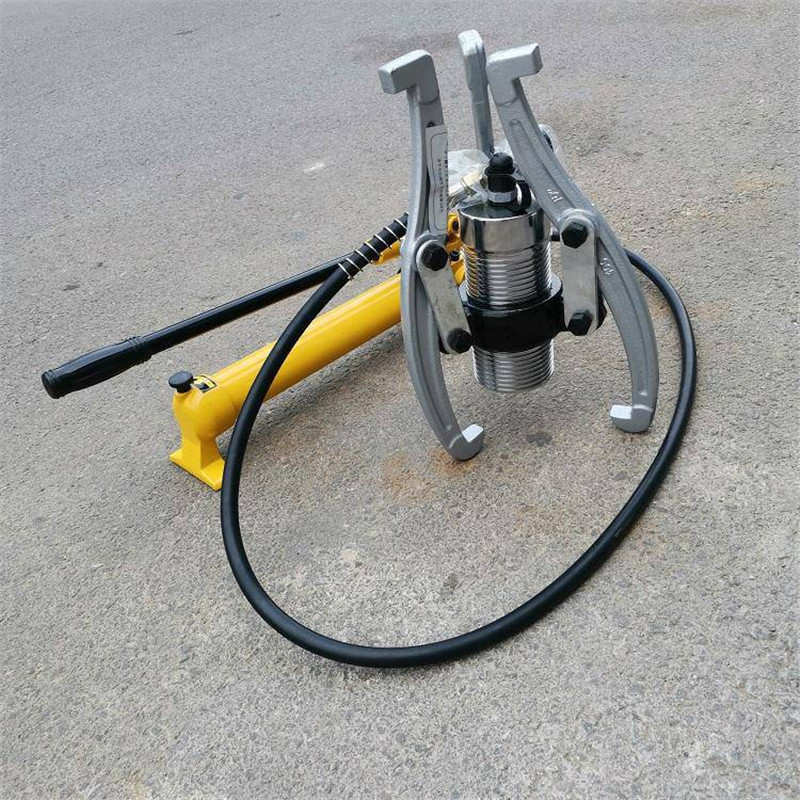

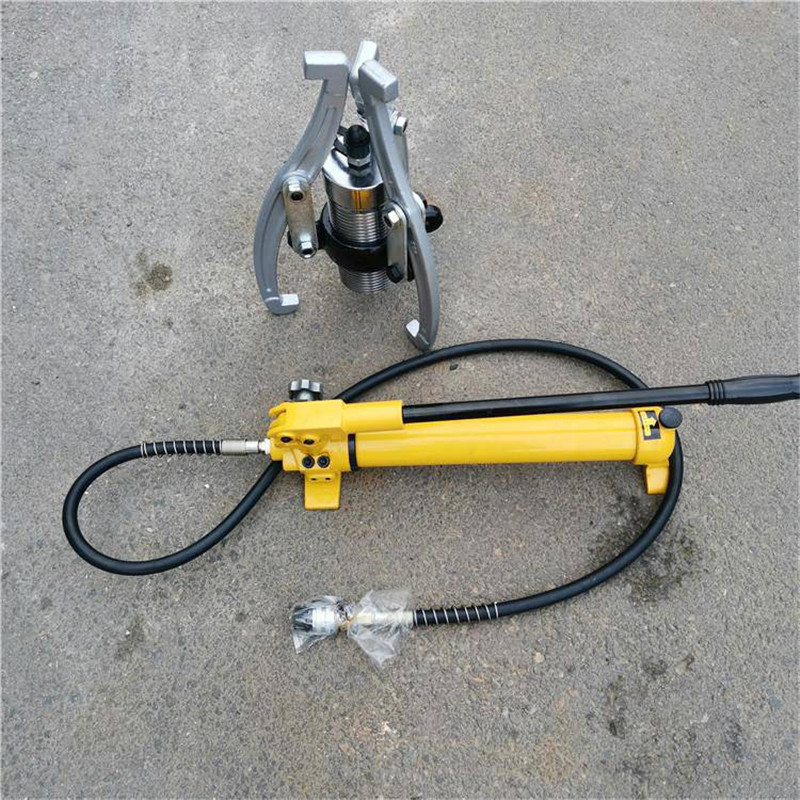

YAX-DYF Separate hydraulic puller/Split type puller

Hydraulic Puller Series

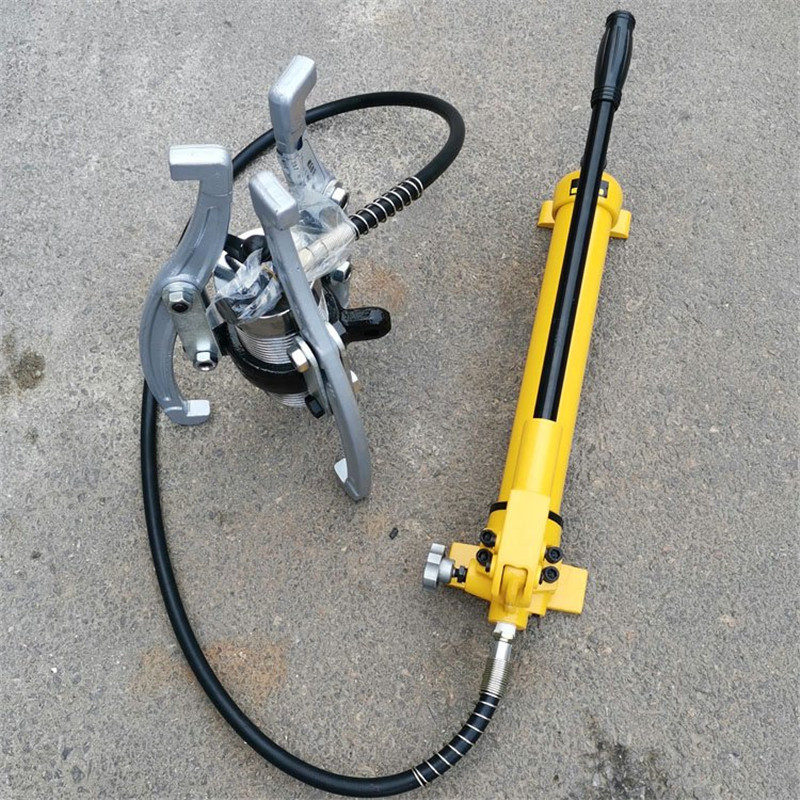

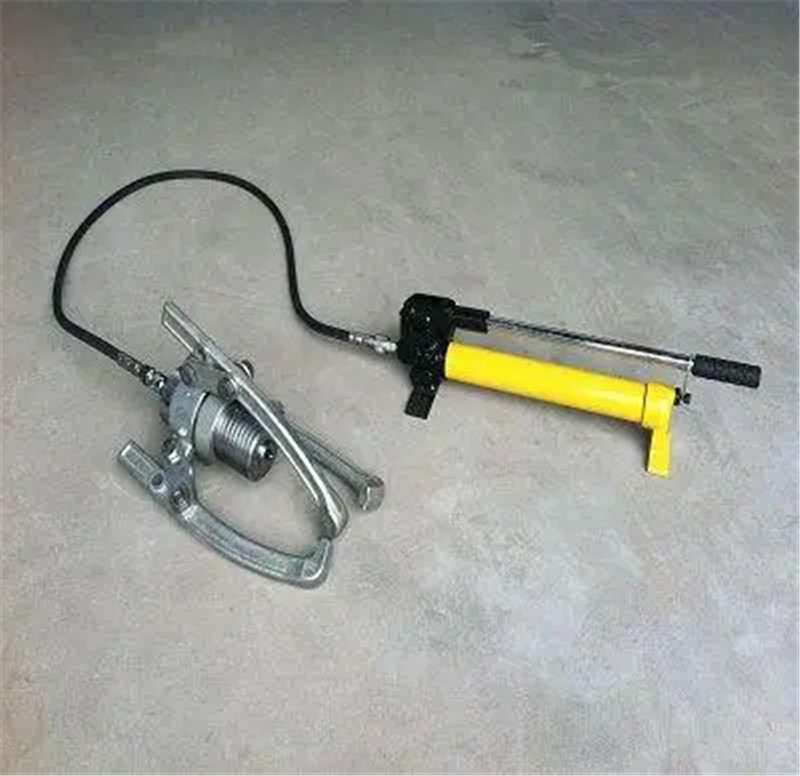

YAX-DYF Separate hydraulic puller/Split type puller

The DYF split type hydraulic puller moves forward directly with the hydraulic starting rod, so the pushing rod itself does not rotate, and the hook claw seat can be adjusted to move forward and backward with the thread. During operation, as long as the handle swings back and forth slightly, the hydraulic starting rod moves forward, and the hook claw correspondingly moves backward to pull out the pulled object. Application scope of DYF split type hydraulic puller

DYF split hydraulic puller is an idealized new tool that replaces traditional pullers. Convenient to operate, labor-saving to use, not limited by the venue, compact in structure, flexible in use, lightweight, small in size, easy to carry, suitable for factories and repair sites.

    Function

    • When using, first insert the slotted end of the handle into the oil return valve stem, and tighten the oil return valve stem in a clockwise direction.
    • Adjust the hook seat to grip the object being pulled by the hook.
    • Insert the handle into the lifting hand hole and lift the piston back and forth. The starting rod moves forward smoothly, and the claw hook moves backward accordingly to pull out the pulled object
    • The effective distance of the piston starting rod of the hydraulic puller is only 50m, so the extension should not exceed 50mm when in use. When it is not pulled out, stop and release the oil return valve to retract the piston starting rod. After adjustment, repeat steps 1, 2, and 3 again until it is pulled out.
    • To retract the piston starting rod, simply use the slotted end of the handle to slightly loosen the return oil valve stem in a counterclockwise direction, and the piston starting rod will gradually retract under the action of the spring. 6. Before use, hydraulic pullers of the corresponding tonnage should be selected based on the outer diameter, pulling distance, and load force of the object being pulled, and overloading should be avoided to avoid damage.
    • This hydraulic puller is used at -5 ℃~45 ℃ and uses (GB443-84) N15 mechanical oil; Used at -20 ℃~-5 ℃, using (GB442-64) synthetic spindle oil. 8. To prevent damage to the equipment caused by overloading, the hydraulic device is equipped with an overload automatic unloading valve. When the pulled object exceeds the rated load, the overload valve will automatically unload, and a larger tonnage hydraulic puller zmff003 will be selected instead

    Features

    -2 meters away from the objects for safe.
    -With safety net for big capacity puller.
    1xuvf

    Technical parameters

    Model

    Disassembly diameter

    Stroke

    Claws number

    Weight

    mm

    mm

    Kg

    YAX-DYF-5

    200

    60

    2/3

    14

    YAX-DYF-10

    250

    60

    2/3

    18

    YAX-DYF-15

    300

    60

    2/3

    22

    YAX-DYF-20

    350

    60

    2/3

    29

    YAX-DYF-30

    450

    60

    2/3

    38

    YAX-DYF-50

    600

    60

    2/3

    58

    YAX-DYF-100

    1000

    60

    2/3

    128
