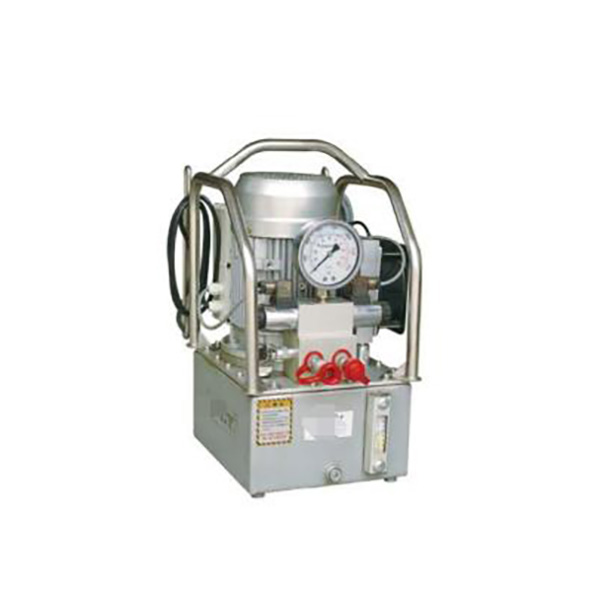

YAX-DB206 Special pump station for hydraulic wrench

Hydraulic wrench dedicated pump station, two-stage pressure, automatic switching of two output flow rates, pump body made of aluminum, lightweight, brushless high-power motor, easy maintenance and long service life, high-performance radiator, fan automatically starts when oil temperature reaches 35 ℃, ensuring uninterrupted operation for a long time.

product details

Features

-Secondary pressure, automatic switching of two output flow rates.

-The pump body is made of aluminum titanium alloy and is lightweight.

-Brushless high-power motor, easy maintenance, long service life.

-High performance radiator, fan automatically starts when oil temperature reaches 35 ℃, ensuring uninterrupted operation for a long time.

-The electric control box adopts circuit board control, which can achieve various complex functions and can be used with hydraulic tools such as hydraulic wrenches, bolt stretchers, jacks, etc.

Technical parameters

Model	Usable oil capacity	Pressure rate (Bar)		Oil displacement per stroke(cm³)		Motor power	Voltage	Weight
Model	L	LP	HP	LP	HP	Kw	V	Kg
YAX-DB208-2	8	70	700	6	1.1	1.1	220	36
YAX-DB208-4	8	70	700	6	1.1	1.1	220	36
YAX-DB208-8	8	70	700	6	1.1	1.1	220	36
