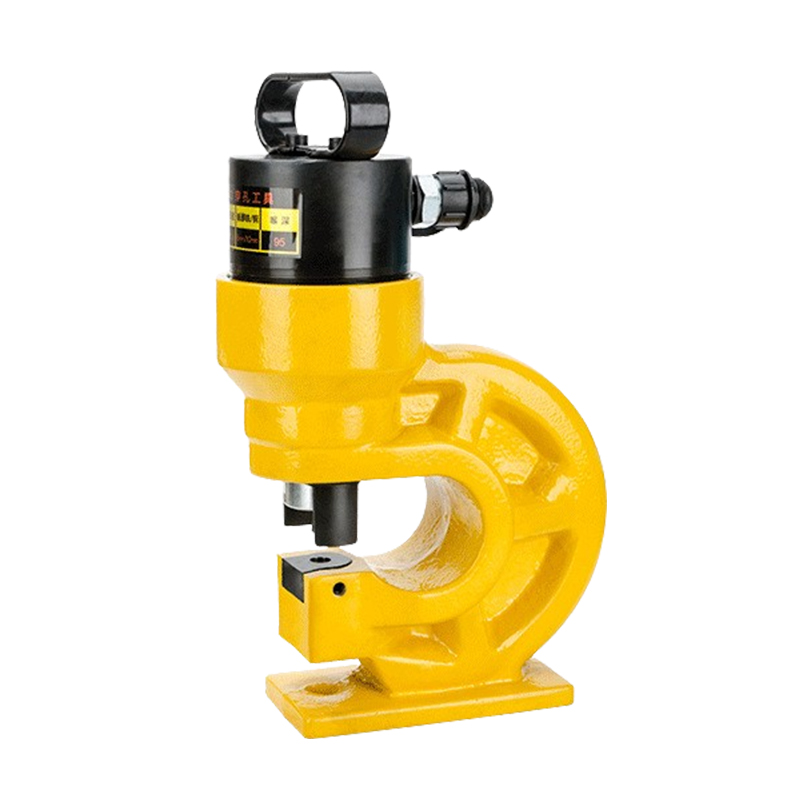

YAX-CK Hydraulic punching machine
The working principle of hydraulic punching machine
1. The working principle of hydraulic punching machine
The hydraulic punching machine mainly consists of oil tank, hydraulic pump, motor, hydraulic cylinder, and punch. When the motor starts running, the hydraulic pump sucks in hydraulic oil, which is controlled by hydraulic components such as pressure regulating valves and directional valves to enter the hydraulic cylinder, thereby pushing the plunger to drive the punch for stamping operations. The hydraulic punching machine has a simple working principle, convenient operation, and high efficiency, and is one of the commonly used equipment in modern industrial processing.
2. Precautions for adding hydraulic oil
Hydraulic oil is one of the essential elements in the working process of hydraulic punching machines. Reasonable and accurate refueling can help improve the efficiency and stability of hydraulic punching machines. Generally speaking, hydraulic punching machines should choose appropriate hydraulic oil brands and models to avoid adding hydraulic oil that does not meet the specifications. At the same time, the quality of hydraulic oil should be regularly tested to ensure that it meets the specified requirements.
The oil level, oil temperature, oil quality, filter, etc. of the hydraulic punching machine need to be inspected and replaced according to the instructions in the operating manual. When adding hydraulic oil, the surrounding environment should be kept clean and dry, and avoid mixing with water, impurities, etc. Pay attention to safety when refueling, and do not add or extract hydraulic oil while the equipment is in operation.
In short, hydraulic punching machines are efficient and convenient mechanical equipment. Understanding its working principle and precautions for adding hydraulic oil plays an important role in improving the service life and efficiency of the equipment.

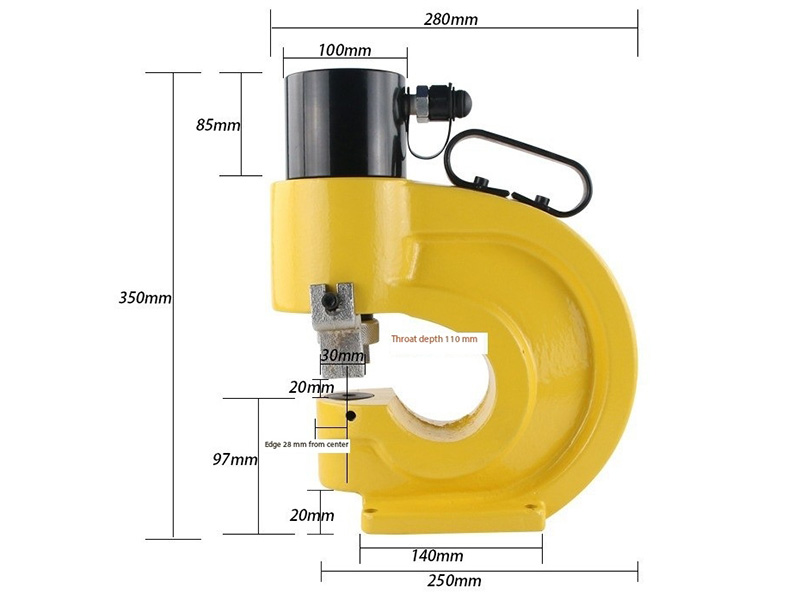

Technical parameters
| Model |
Capacity(T) |
Aperture |
Metal plate(mm) |
Cooper plate(mm) |
Depth(mm) |
Weight (Kg) |
| YAX-CK60 |
31 |

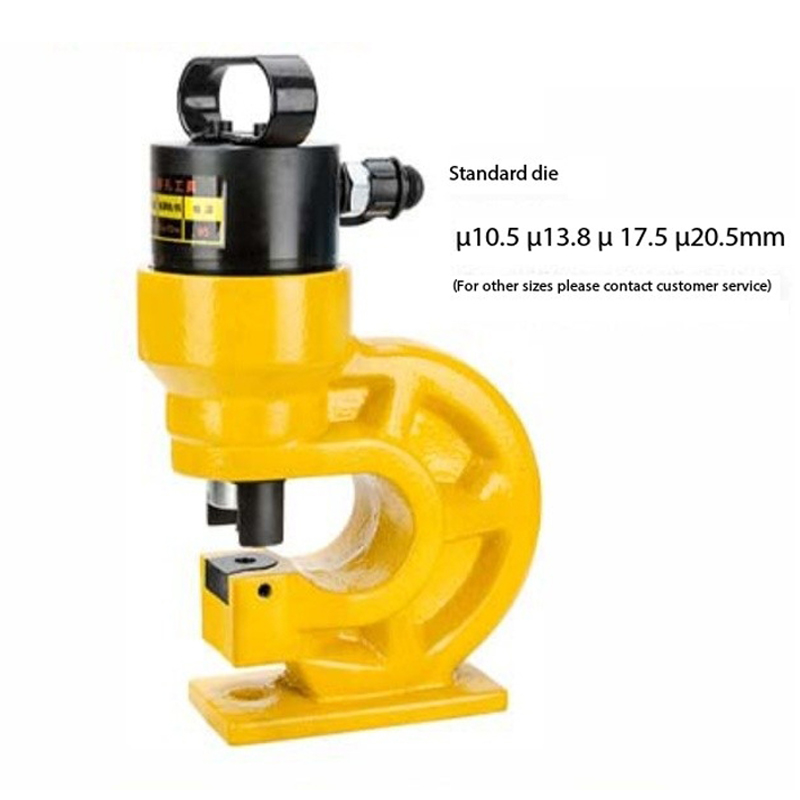

ᶲ10.5, ᶲ, 13.5, ᶲ17.5, ᶲ20.5 |
6 |
10 |
95 |
17.5 |
| YAX-CK70 |
35 |
ᶲ10.5, ᶲ, 13.5, ᶲ17.5, ᶲ20.5 |
10 |
12 |
110 |
35 |
| YAX-CK80 |
35 |
ᶲ10.5, ᶲ, 13.5, ᶲ17.5, ᶲ20.5 |
12 |
16 |
125 |
40 |
