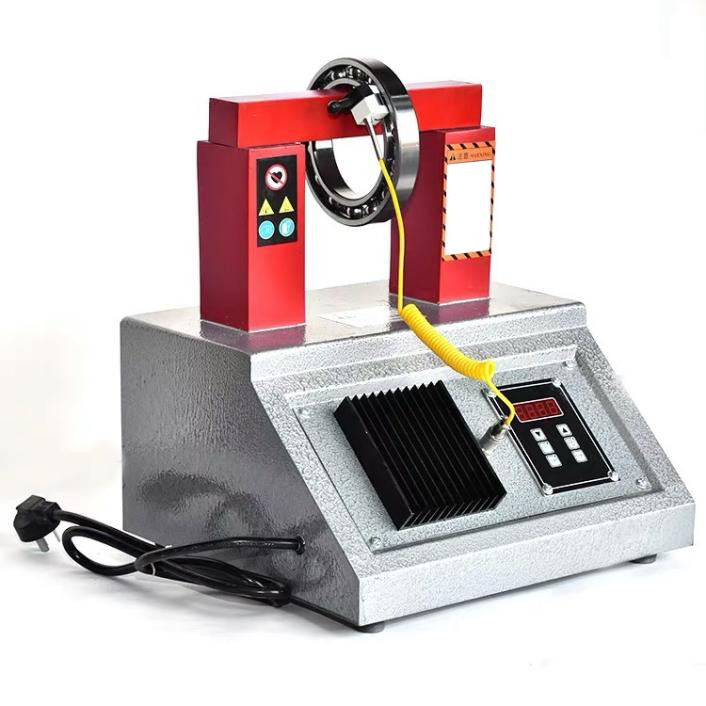

YAX-20X Bearing Heater 20mm To 320mm Bore Size

Electromagnetic induction and the generation of current/electrical energy inside the conductor are converted into thermal energy.
The heating rod is heated and forms a closed magnetic circuit with the iron core of the host. When working/heating, the workpiece is rapidly heated by eddy currents generated through the magnetic circuit of the machine.

product details

Use scope

20X-3 bearing heater heating bearing inner diameter 70-250mm

Technical parameters of 20X-3 bearing fast heater:

Voltage: 380V Power: 7.5KVA

Adapt to bearing inner/outer diameter: ф 70mm-250mm/400mm

Technical advantages: fast heating speed and uniform heating;

By adopting frequency conversion technology, heating of any small workpiece can be achieved, and the problem of blind hole heating in aluminum parts has been solved;

Continuous operation without the need for any external cooling system;

Easy to use, temperature can be controlled;

Optional rotating and sliding heating rods;

Time control accuracy up to 0.01 seconds;

Temperature control accuracy ± 2 ℃;

Automatic power calibration and demagnetization;

Monitor the heating process at all times through magnetic probes and microprocessors.

-YAX-20X series heaters are mainly used to heat various types of metal parts such as bearings, gears, coupling joints, railway locomotive wheel centers, and wheel rims to expand and meet the needs of interference assembly or disassembly.

Technical parameters

Model	Rated power	Rated voltage	Rated current	Heating workpiece			Weight
	KVA	V	A	Internal	External-Biggest	Width	kg
YAX-20X-I	3.3	220	12	30-100	280	115	55
YAX-20X-II	5.5	380	14.5	85-200	360	150	105
YAX-20X-III	7.5	380	19.7	120-250	400	180	120
YAX-20X-IV	11	380	28.9	150-360	450	200	135
YAX-20X-V	13	380	34.2	180-400	500	220	150
YAX-20X-VI	18	380	47				180
YAX-20X-VII	22	380	58				250
