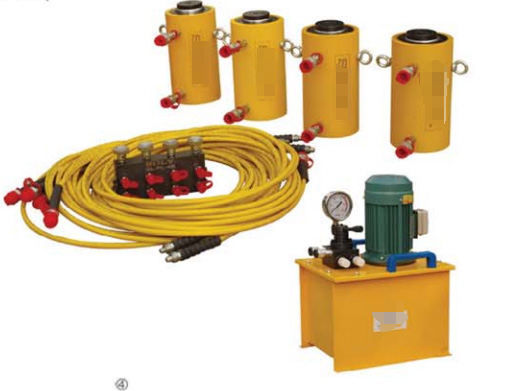

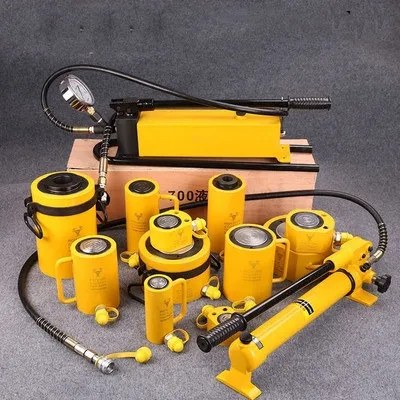

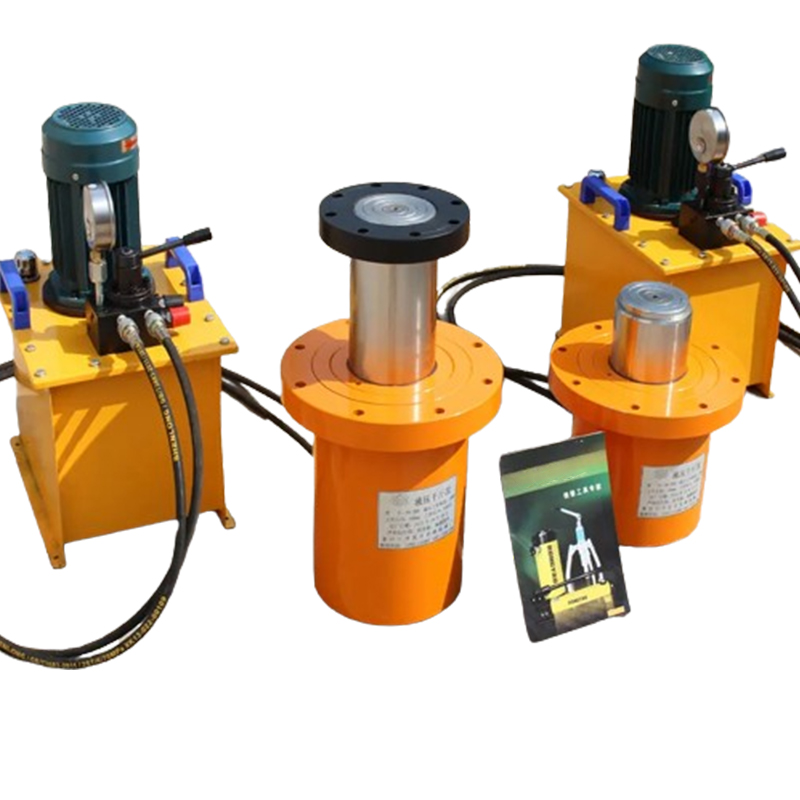

TDYG Electric synchronous hydraulic jack(can be equipped with PLC synchronous lifting hydraulic system)
Features
-This product is by electric pump station, or manual oil pump and multiple separate hydraulic jacks and master adjustment synchronous valve composition, reasonable structure, the people in the indicators, which has advanced the pressure and oil spill dual protection device, oil fields, mines machinery is top heave, maintenance and department of large-sized workpiece installation ideal equipment.
The matters needing attention
1.The pump use: summer 46#anti-wear hydraulic oil, while filling must use120 purpose filter mesh.
2.As the core for spring return jack specialists, lifting end must return. Because electric pump station before delivery pressure are already adjust well to adjust, the user is unfavorable, if need to adjust, must make clear the situation in principle of any regulation.
3. When more than 70MPa use is strictly prohibited heavy load, more than 30MPa, otherwise are prohibited during the hydraulic jack, knock the consequences.
4.Use medium hydraulic oil and packings for half an year replaced periodically once and cleaning oil absorption hole mesh, lest when using abnormality, the influence is used effect.

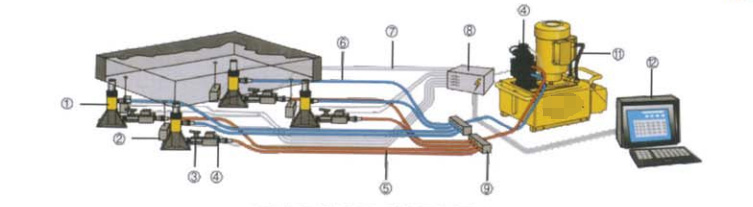

Schematic diagram of PLC synchronous lifting hydraulic system
- 1.Hydraulic cylinder 2. Displacement sensor 3. Check valve 4. Control valve 5. Hoses (Process) 6. Hoses (return) 7. Cable lines 8. Junction box 9. Oil circuit block 10. Control valve 11. Pump 12. Control sheet none.
Technical parameters
| Model Number of synchronizations (-n) |
Lifting capacity (Tons) |
Lifting height (mm) |
Minimum height(mm) |
Pistons diameter(mm) |
Working pressure(Mpa) |
| YAX-TDYG5016-n |
50 |
160 |
345 |
70 |
70 |
| YAX-TDYG10016-n |
100 |
160 |
345 |
100 |
70 |
| YAX-TDYG15016-n |
150 |
160 |
345 |
125 |
70 |
| YAX-TDYG20020-n |
200 |
200 |
385 |
150 |
70 |
| YAX-TDYG32020-n |
320 |
200 |
400 |
180 |
70 |
| YAX-TDYG50020-n |
500 |
200 |
440 |
220 |
70 |
| YAX-TDYG60020-n |
600 |
200 |
460 |
250 |
70 |
