Bolt Stretcher Series
01

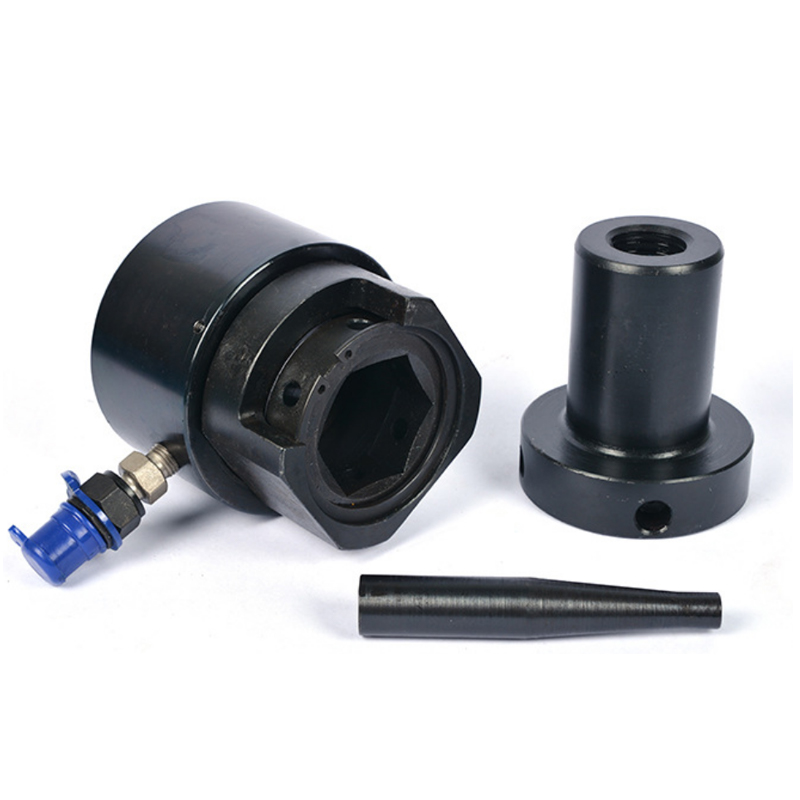

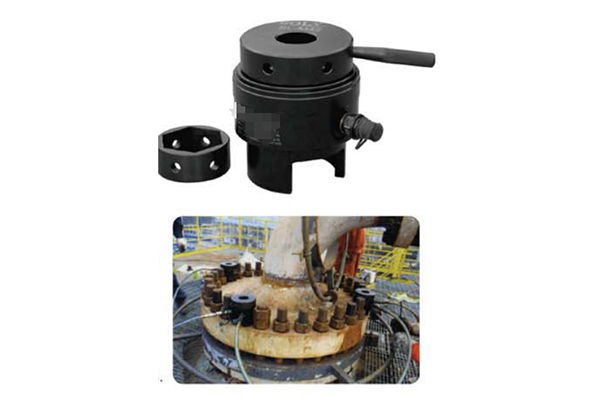

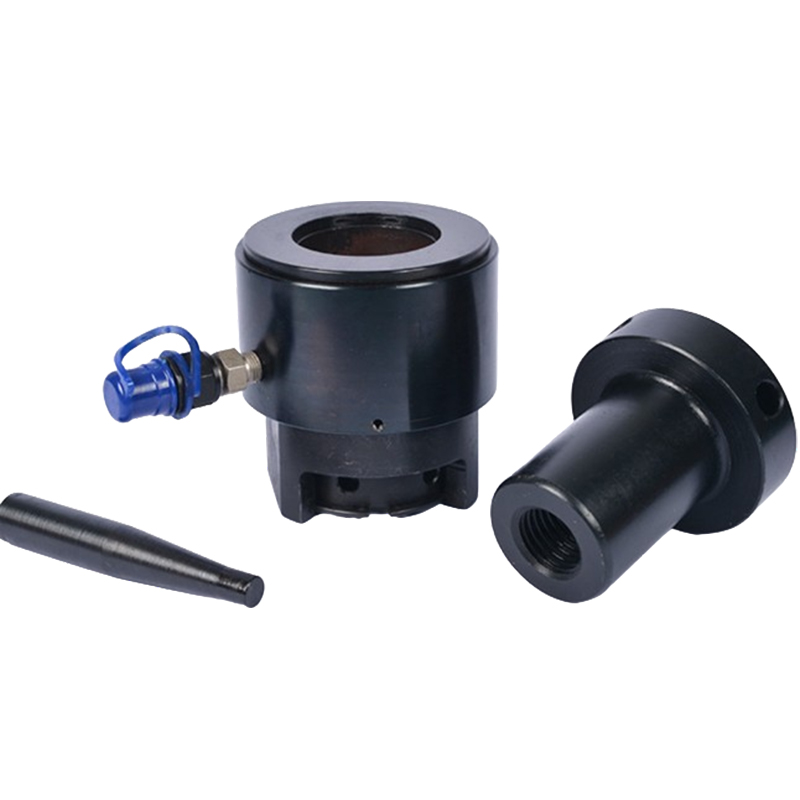

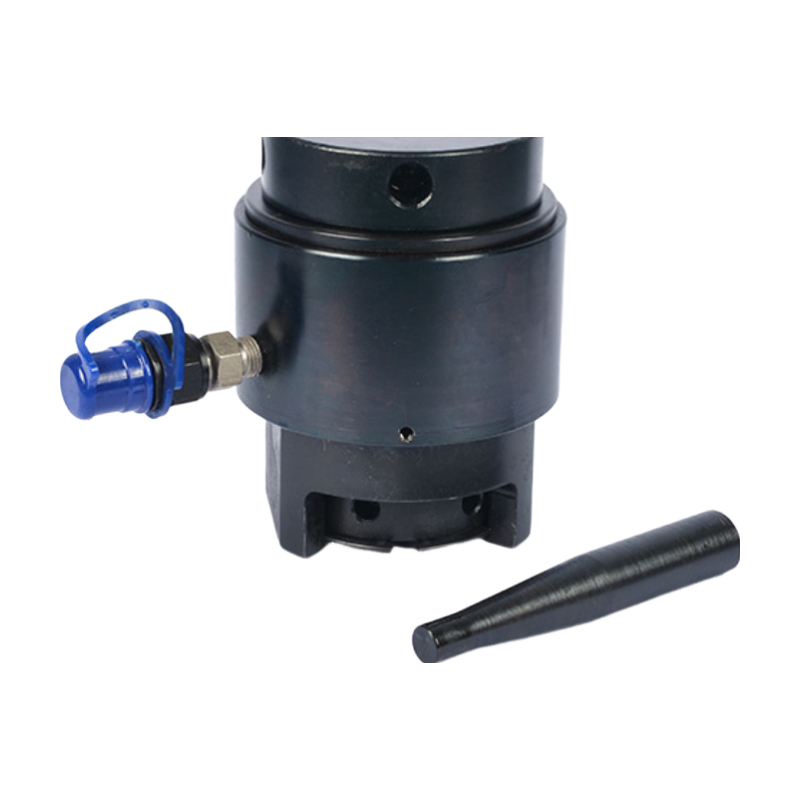

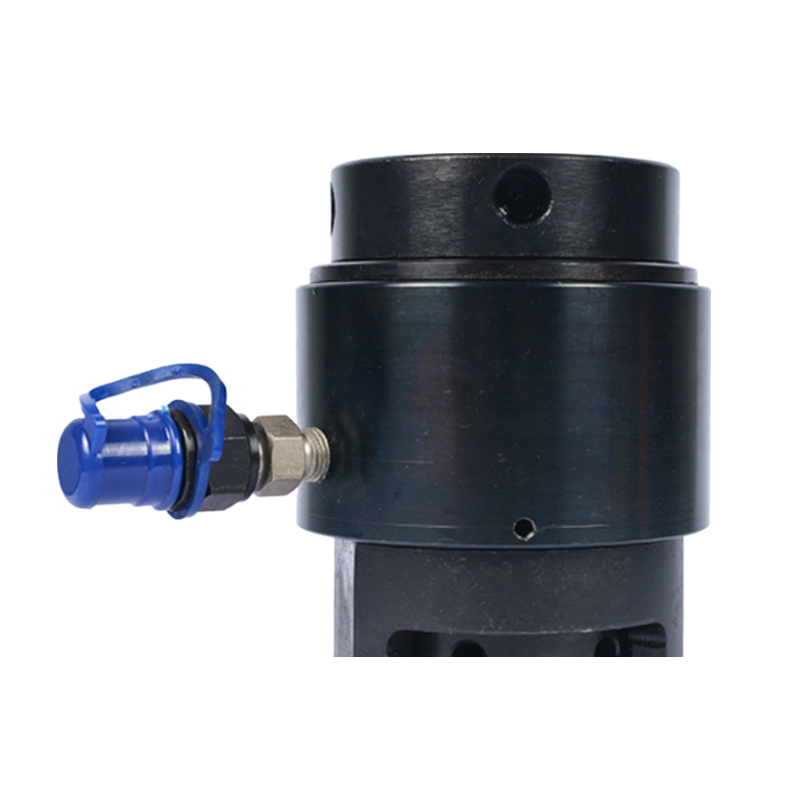

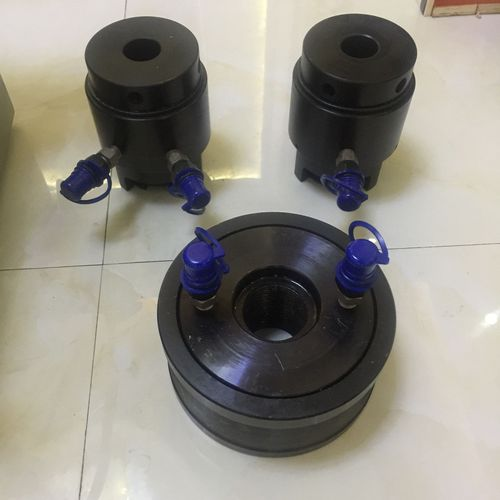

TB Hydraulic bolt stretcher
Features
-The maximum working pressure 150MPa(1500BAR).
-Single stud bolt tensioner is able to cope with multi-specification threaded pullers to work, the maximum cost savings.
-Single stud bolt tensioner is able to cope with multi-specification threaded pullers to work, the maximum cost savings.
-High speed and accuracy; multiple tensioners can simultaneously work together.

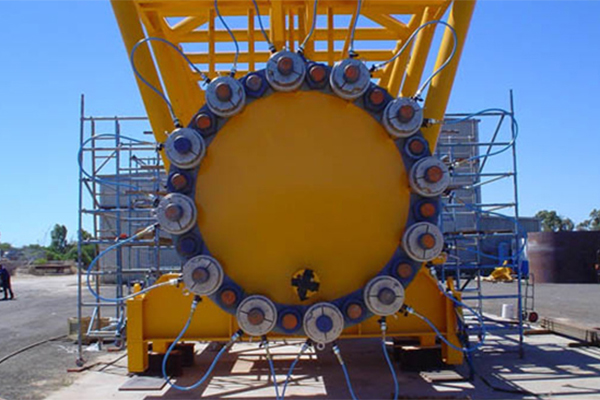

-Widely used in petroleum, chemical, power generation, steel mills, heavy machinery, metallurgy, shipbuilding, construction, cement and other industries.
Technical parameters
| Model | Applicable bolts |
Maximum load |
Weight |
Stroke |
External dimensions |
|||||
|
mm |
KN |
Kg |
mm |

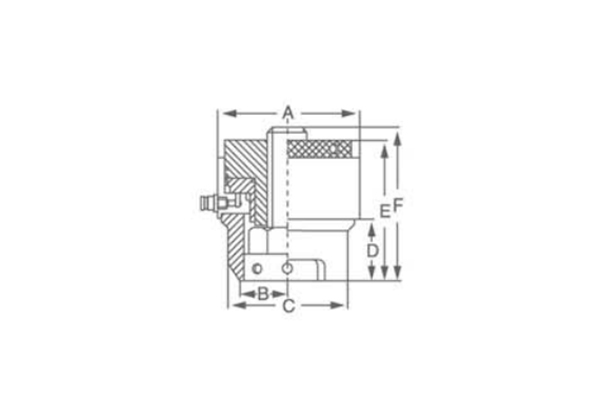

A |
B |
C |
D |
E |
F |
|
| YAX-TB0 |
M20 |
155 |
1.3 |
10 |
71 |
25 |
62 |
34.5 |
91.5 |
129 |
|
M22 |
155 |
1.3 |
10 |
71 |
25 |
62 |
34.5 |
91.5 |
132 |
|
| YAX-TB1 |
M24 |
282 |
3.5 |
10 |
85 |
32 |
68 |
43 |
112 |
155 |
| YAX-TB2 |
M24 |
486 |
5.5 |
10 |
109 |
30 |
75 |
38 |
117 |
161 |
|
M27 |
486 |
5.5 |
10 |
109 |
30 |
75 |
38 |
117 |
161 |
|
|
M30 |
486 |
5.5 |
10 |
109 |
30.5 |
80 |
41 |
120 |
169 |
|
|
M33 |
486 |
5.5 |
10 |
109 |
37 |
88 |
44 |
123 |
175 |
|
|
M36 |
486 |
5.5 |
10 |
109 |
38.5 |
96 |
47 |
126 |
181 |
|
| YAX-TB3 |
M33 |
814 |
7.0 |
10 |
132 |
37 |
88 |
44 |
127 |
176 |
|
M36 |
814 |
7.0 |
10 |
132 |
38.5 |
96 |
47 |
130 |
182 |
|
|
M39 |
814 |
7.0 |
12 |
132 |
42 |
96 |
50.5 |
133 |
184 |
|
|
M42 |
814 |
7.0 |
12 |
132 |
41.5 |
108 |
53.5 |
136 |
195 |
|
| YAX-TB4 |
M39 |
989 |
10 |
12 |
150 |
42 |
113 |
50 |
134 |
195 |
|
M42 |
989 |
10 |
12 |
150 |
45.5 |
113 |
53.5 |
137.5 |
202 |
|
|
M45 |
989 |
10 |
12 |
150 |
52.5 |
118 |
57 |
141 |
208 |
|
|
M48 |
989 |
10 |
12 |
150 |
51 |
114 |
60 |
144 |
214 |
|
| YAX-TB5 |
M52 |
1413 |
15 |
12 |
174 |
52 |
132 |
63 |
152 |
223 |
|
M56 |
1413 |
15 |
12 |
174 |
58 |
138 |
69.5 |
158 |
235 |
|
| YAX-TB6 |
M56 |
1649 |
17 |
15 |
198 |
58 |
138 |
69.5 |
158 |
237 |
|
M60 |
1649 |
17 |
15 |
198 |
58 |
138 |
69.5 |
158 |
237 |
|
|
M64 |
1649 |
17 |
15 |
198 |
63.5 |
153 |
76 |
164 |
250 |
|
|
M68 |
1649 |
17 |
15 |
198 |
76 |
164 |
82 |
170 |
263 |
|
| YAX-TB7 |
M72 |
2131 |
26 |
15 |
222 |
85 |
157 |
82 |
170 |
263 |
|
M76 |
2131 |
26 |
15 |
222 |
80 |
180 |
89 |
177 |
276 |
|
| YAX-TB8 |
M76 |
2544 |
29.5 |
15 |
252 |
80 |
180 |
89 |
180 |
279 |
|
M80 |
2544 |
29.5 |
15 |
252 |
80 |
180 |
89 |
180 |
279 |
|
|
M85 |
2544 |
29.5 |
15 |
252 |
95 |
190 |
95 |
186 |
291 |
|
|
M90 |
2544 |
29.5 |
15 |
252 |
102.5 |
205 |
101 |
192 |
304 |
|
| YAX-TB9 |
M95 |
3101 |
38 |
15 |
282 |
94 |
200 |
107 |
199 |
318 |
|
M100 |
3101 |
38 |
15 |
282 |
103 |
210 |
114 |
216 |
318 |
|
| YAX-TB10 |
M105 |
3793 |
49 |
15 |
318 |
112 |
225 |
120 |
216 |
353 |
|
M110 |
3793 |
49 |
15 |
318 |
112 |
225 |
120 |
216 |
353 |
|
|
M115 |
3793 |
49 |
15 |
318 |
112 |
225 |
120 |
216 |
353 |
|

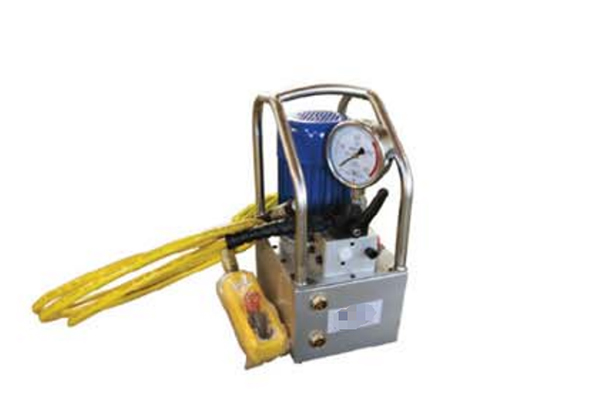

Note: Can be equipped with YAXNOVA high-quality ultra-high pressure electric hydraulic pump.
