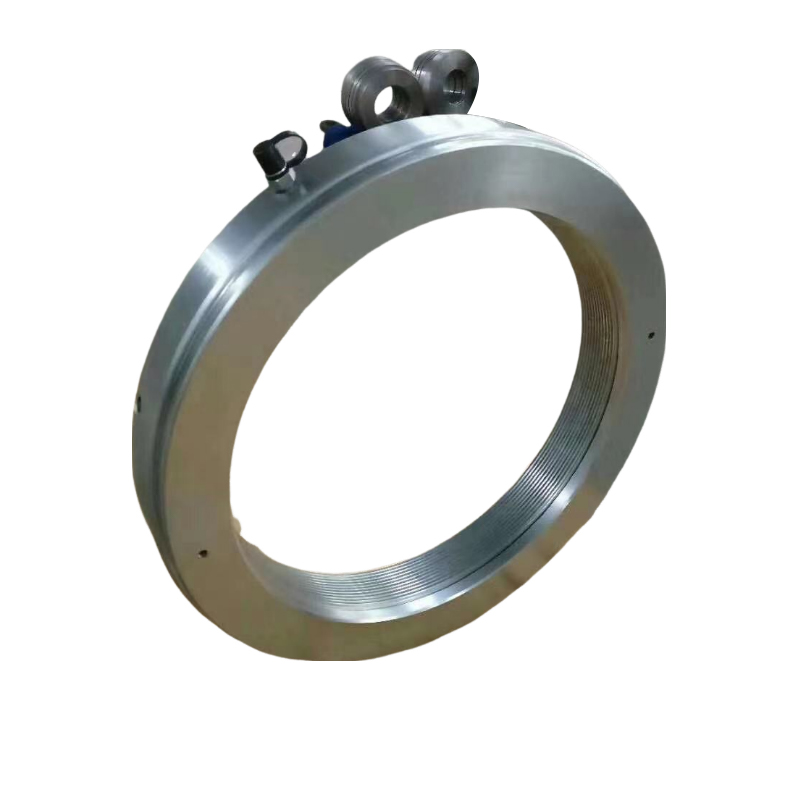

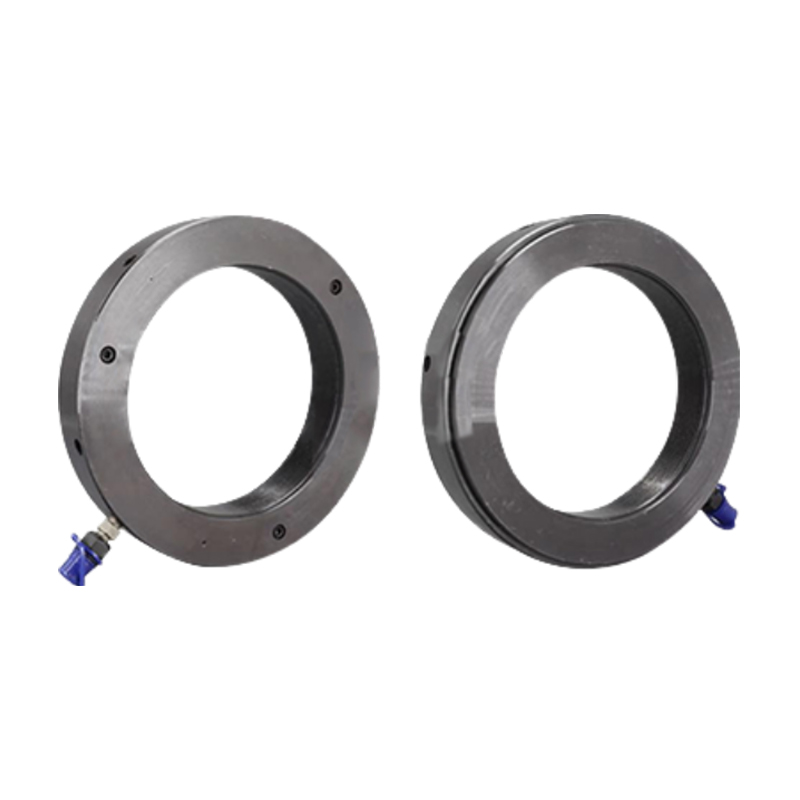

Quality Assurance HMV Hydraulic Nut

-YAX-HMV Series hydraulic nut is mainly used for seamless connection of fitting, its working principle is to use oil in shaft ultra produce a thrust and bushings produce a tension, the shaft and bushings stress evenly together.

-Have axial and radial note oil in two ways.

-The pressure evenly among pressure ring.

-Standard working pressure 0-150Mpa.

product details

product Tags

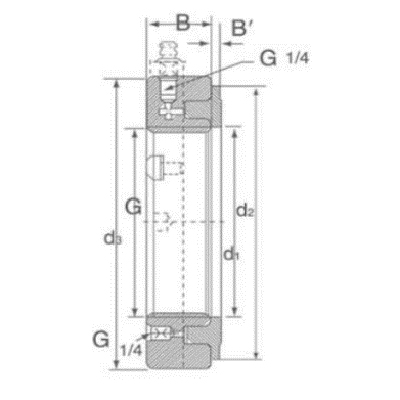

Hydraulic nut main dimensions

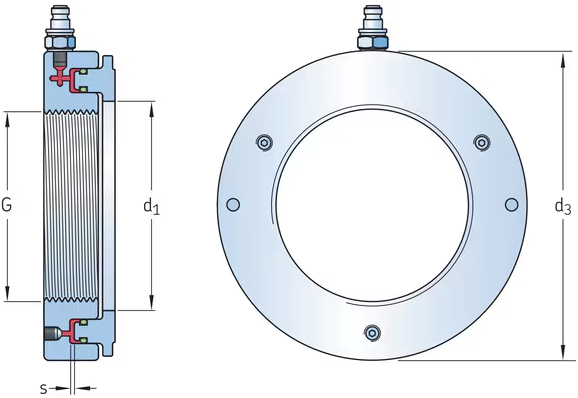

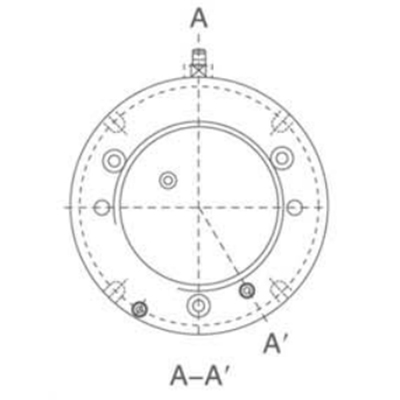

S - Hydraulic nut main dimensions

d₁ – Piston inner diameter

d₃ – Piston outer diameter

G – Connecting thread

More detailed dimensions can be found on item level

Note: The easiest way of finding the right hydraulic nut is to use the filter and then sort by product weight in table below.

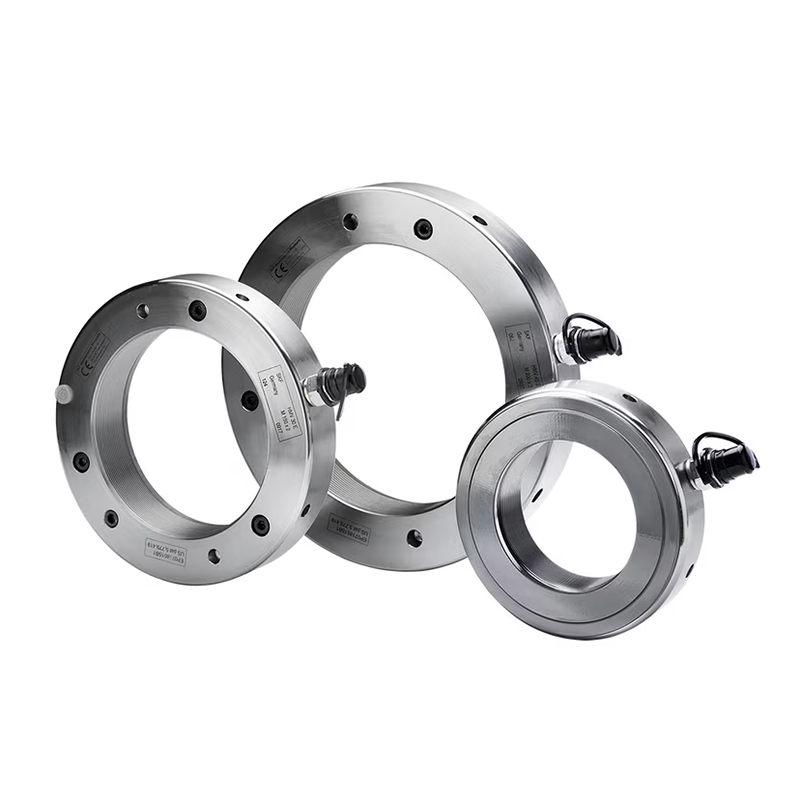

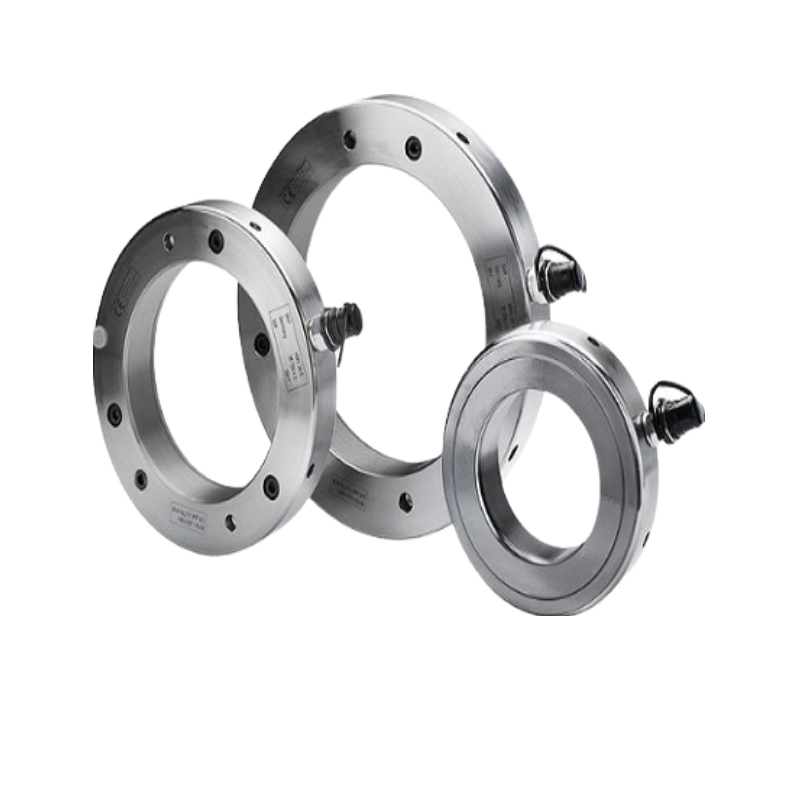

Hydraulic nut

Hydraulic bolt stretcher

Hydraulic wrench c

Use scope

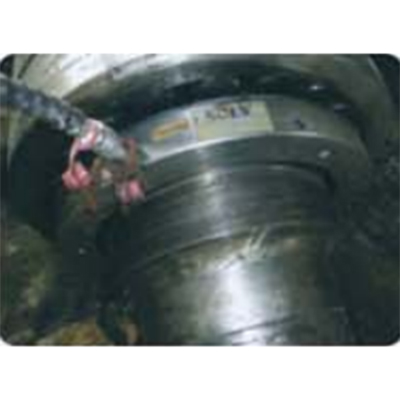

Installation and removal bearing; But according to customer special requirement for papermaking machinery, cement machinery and metallurgy copper aluminum metal industry.

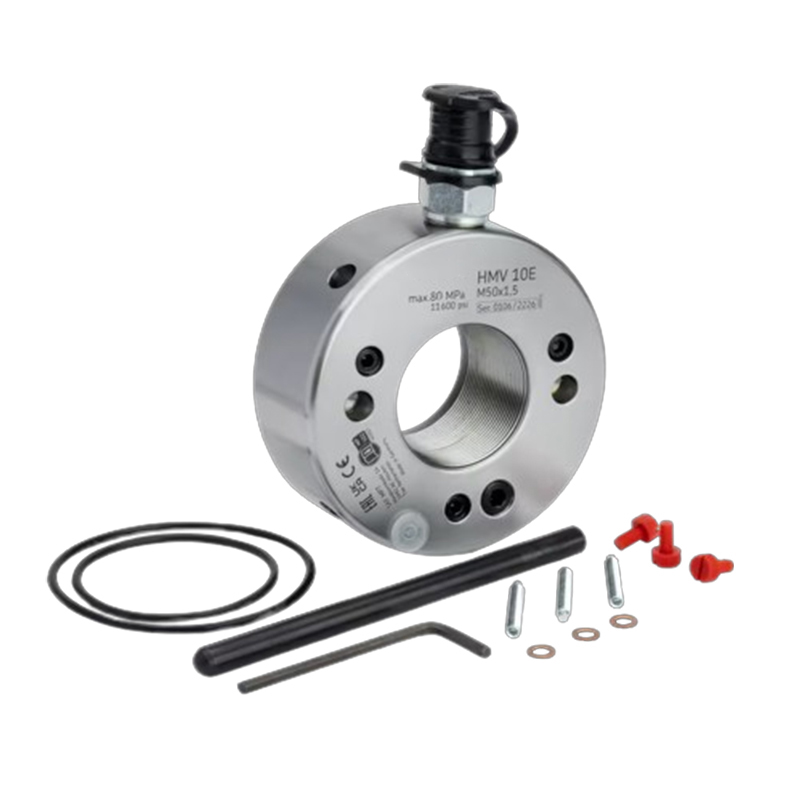

YAX-HMV..E type hydraulic nut applies to install and remove inner diameter 50mm or above 50 taper hole bearings. This method is more convenient and mechanical method to save time.
YAX-HMV..E hydraulic nut can provide metric or imperial thread design, otherwise no threaded hole of nut for some more special cases.

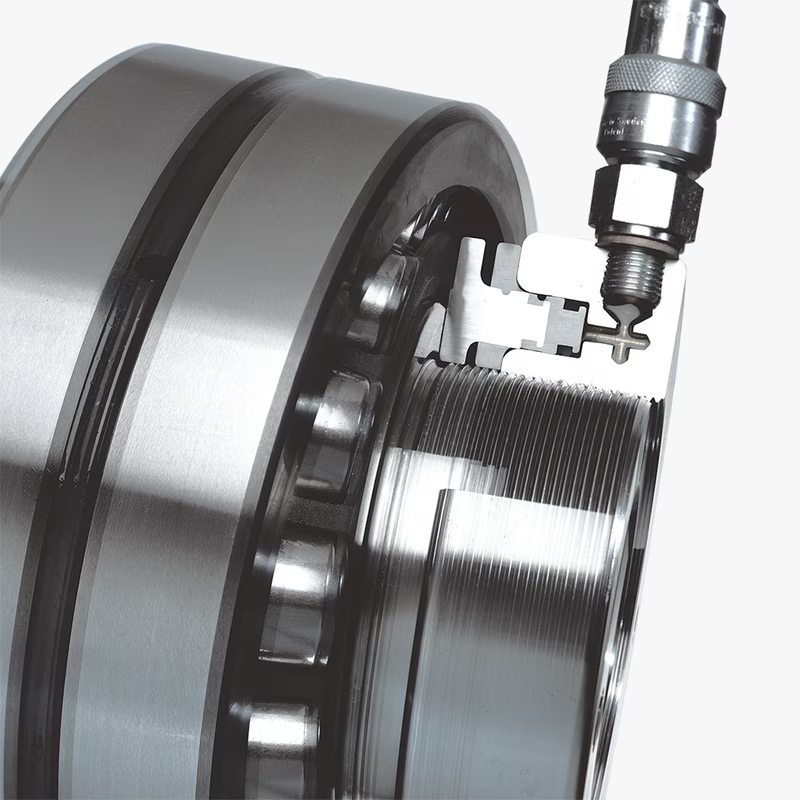

YAX-HMV..E type hydraulic nuts in the tapered shaft or the sleeve erection and dismantling of bearings, usually is difficult and time-consuming projects. Use the hydraulic nut Yaxnova, can reduce this kind of problem. The oil is pushing a piston pump input nut in power of erection and dismantling, enough, effortless, both bearing accurately and safety. All hydraulic nut attached to a fast connection coupling ware, which connect the hydraulic pump.
Metric size of hydraulic nuts HMV from YAX-10E (d= 50mm) to YAX-HMV 200E (d-1,000 mm).
Suitable for 50 mm to 1000 mm trunnion.
Could be asked to provide special thread.

Technical parameters

Model	Screw thread(G)	Inner diameter of pressure ring d1 (mm)	External diameter of pressure ring d2(mm)	External diameter d3 (mm)	B (mm)	B1 (mm)	Maximum movement allowed by piston charging	Piston area(m²)	Weight (Kg)
YAX-HMV10E	M50*1.5	50.50	104	114	38	4	5	2,900	2.70
YAX-HMV11E	M55*2	55.50	109	120	38	4	5	3,150	2.75
YAX-HMV12E	M60*2	60.50	115	125	38	5	5	3,300	2.80
YAX-HMV13E	M65*2	65.50	121	130	38	5	5	3,600	3.00
YAX-HMV14E	M70*2	70.50	127	135	38	5	5	3,800	3.20
YAX-HMV15E	M75*2	75.50	132	140	38	5	5	4,000	3.40
YAX-HMV16E	M80*2	80.50	137	146	38	5	5	4,200	3.70
YAX-HMV17E	M85*2	85.50	142	150	38	5	5	4,400	3.75
YAX-HMV18E	M90*2	90.50	147	156	38	5	5	4,700	4.00
YAX-HMV19E	M95*2	95.50	153	162	38	5	5	4,900	4.30
YAX-HMV20E	M100*2	100.50	156	166	38	6	5	5,100	4.40
YAX-HMV21E	M105*2	105.50	163	172	38	6	5	5,300	4.65
YAX-HMV22E	M110*2	110.50	169	178	38	6	5	5,600	4.95
YAX-HMV23E	M115*2	115.50	174	182	38	6	5	5,800	5.00
YAX-HMV24E	M120*2	120.50	179	188	38	6	5	6,000	5.25
YAX-HMV25E	M125*2	125.50	184	192	38	6	5	6,200	5.35
YAX-HMV26E	M130*2	130.50	190	198	38	6	5	6,400	5.65
YAX-HMV27E	M135*2	135.50	195	204	38	6	5	6,600	5.90
YAX-HMV28E	M140*2	140.50	200	208	38	7	5	6,800	6.00
YAX-HMV29E	M145*2	145.50	206	214	39	7	5	7,300	6.50
YAX-HMV30E	M150*2	150.50	211	220	39	7	5	7,500	6.60
YAX-HMV31E	M155*3	155.50	218	226	39	7	5	8,100	6.95
YAX-HMV32E	M160*3	160.50	224	232	40	7	6	8,600	7.60
YAX-HMV33E	M165*3	165.50	229	238	40	7	6	8,900	7.90
YAX-HMV34E	M170*3	170.50	235	244	41	7	6	9,400	8.40
YAX-HMV36E	M180*3	180.50	247	256	41	7	6	10,300	9.15
YAX-HMV38E	M190*3	191	259	270	42	8	7	11,500	10.5
YAX-HMV40E	M200*3	201	271	282	43	8	8	12,500	11.5
YAX-HMV41E	Tr205*4	207	276	288	43	8	8	12,800	12.0
YAX-HMV42E	Tr210*4	212	282	294	44	8	9	13,400	12.5
YAX-HMV43E	Tr215*4	217	287	300	44	8	9	13,700	13.00
YAX-HMV44E	Tr220*4	222	293	306	44	8	9	14,400	13.5
YAX-HMV45E	Tr225*4	227	300	312	45	8	9	15,200	14.5
YAX-HMV46E	Tr230*4	232	305	318	45	8	9	15,500	14.5
YAX-HMV47E	Tr235*4	237	311	326	46	8	10	16,200	16.0
YAX-HMV48E	Tr240*4	242	316	330	46	9	10	16,500	16.0
YAX-HMV50E	Tr250*4	252	329	342	46	9	10	17,600	17.5
YAX-HMV52E	Tr260*4	262	341	356	47	9	11	18,800	19.5
YAX-HMV54E	Tr270*4	272	352	368	48	9	12	19,800	20.5
YAX-HMV56E	Tr280*4	282	363	380	49	9	12	21,100	22.0
YAX-HMV58E	Tr290*4	292	375	390	49	9	13	22,400	22.5
YAX-HMV60E	Tr300*4	302	386	404	51	10	14	23,600	25.5
YAX-HMV62E	Tr310*5	312	397	416	52	10	14	24,900	27.0
YAX-HMV64E	Tr320*5	322	409	428	53	10	14	26,300	29.5
YAX-HMV66E	Tr330*5	332	419	438	53	10	14	27,000	30.0
YAX-HMV68E	Tr340*5	342	430	450	54	10	14	28,400	31.5
YAX-HMV69E	Tr345*5	347	436	456	54	10	14	29,400	32.5
YAX-HMV70E	Tr350*5	352	442	464	56	10	14	29,900	35.0
YAX-HMV72E	Tr360*5	362	455	472	56	10	15	31,300	35.5
YAX-HMV73E	Tr365*5	367	460	482	57	11	15	31,700	38.5
YAX-HMV74E	Tr370*5	372	466	486	57	11	16	32,800	39.0
YAX-HMV76E	Tr380*5	382	476	498	58	11	16	33,500	40.5
YAX-HMV77E	Tr385*5	387	483	504	58	11	16	34,700	41.0
YAX-HMV80E	Tr400*5	402	499	522	60	11	17	36,700	45.5
YAX-HMV82E	Tr410*5	412	510	534	61	11	17	38,300	48.0
YAX-HMV84E	Tr420*5	422	522	546	61	11	17	40,000	50.0
YAX-HMV86E	Tr430*5	432	532	556	62	11	17	40,800	52.5
YAX-HMV88E	Tr440*5	442	543	566	62	12	17	42,500	54.0
YAX-HMV90E	Tr450*5	452	554	580	64	12	17	44,100	57.5
YAX-HMV92E	Tr460*5	462	565	590	64	12	17	45,100	60.0
YAX-HMV94E	Tr470*5	472	576	602	65	12	18	46,900	62.0
YAX-HMV96E	Tr480*5	482	587	612	65	12	19	48,600	63.0
YAX-HMV98E	Tr490*5	492	597	624	66	12	19	49,500	66.0
YAX-HMV100E	Tr500*5	502	609	636	67	12	20	51,500	70.0
YAX-HMV102E	Tr510*6	512	624	648	68	12	20	53,300	74.0
YAX-HMV104E	Tr520*6	522	634	658	68	13	21	54,300	75.0
YAX-HMV106E	Tr530*6	532	645	670	69	13	21	56,200	79.0
YAX-HMV108E	Tr540*6	542	657	682	69	13	21	58,200	81.0
YAX-HMV110E	Tr550*6	552	667	693	70	13	22	59,200	84.0
YAX-HMV112E	Tr560*6	562	678	704	71	13	23	61,200	88.0
YAX-HMV114E	Tr570*6	572	689	716	72	13	23	63,200	91.0
YAX-HMV116E	Tr580*6	582	699	726	72	13	23	64,200	94.0
YAX-HMV120E	Tr600*6	602	721	748	73	13	23	67,300	100
YAX-HMV126E	Tr630*6	632	754	782	74	14	23	72,900	110
YAX-HMV130E	Tr650*6	652	775	804	75	14	24	76,200	115
YAX-HMV134E	Tr670*6	672	796	826	76	14	25	79,500	120
YAX-HMV138E	Tr690*6	692	919	848	77	14	25	84,200	127
YAX-HMV142E	Tr710*7	712	840	870	78	15	25	87,700	135
YAX-HMV150E	Tr750*7	752	883	912	79	15	25	95,200	146
YAX-HMV160E	Tr800*7	802	936	965	80	16	25	103,900	161
YAX-HMV170E	Tr850*7	852	990	1020	83	16	26	114,600	181
YAX-HMV180E	Tr900*7	902	1043	1075	86	17	30	124,100	205
YAX-HMV190E	Tr9850*8	952	1097	1126	86	17	30	135,700	218
YAX-HMV200E	Tr1000*8	1002	1150	1180	88	17	34	145,800	239

Note: Can be equipped with YAX high-quality ultra-high pressure manual hydraulic pump
