Hydraulic Wrench
0102030405

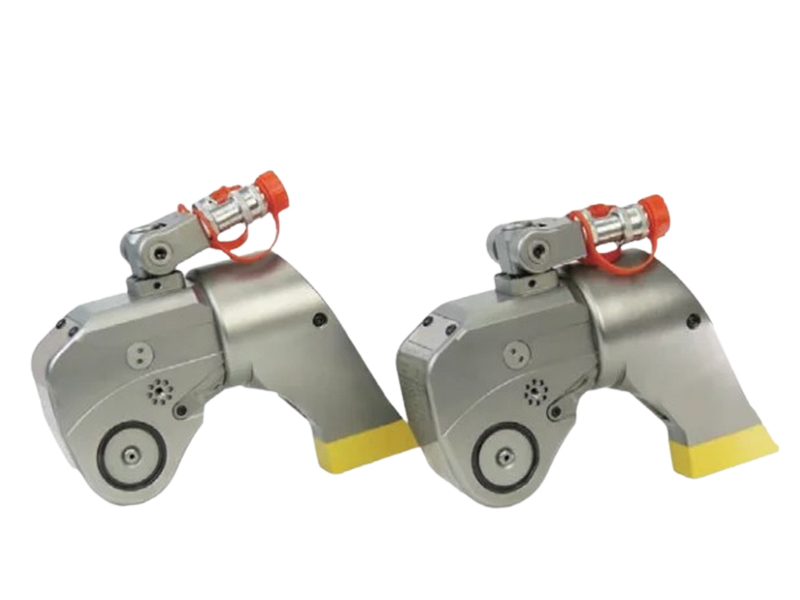

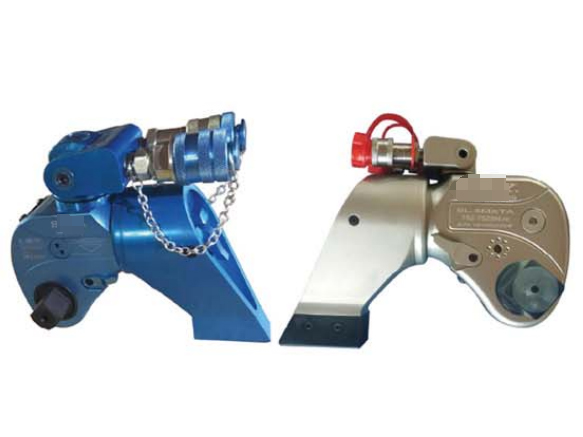

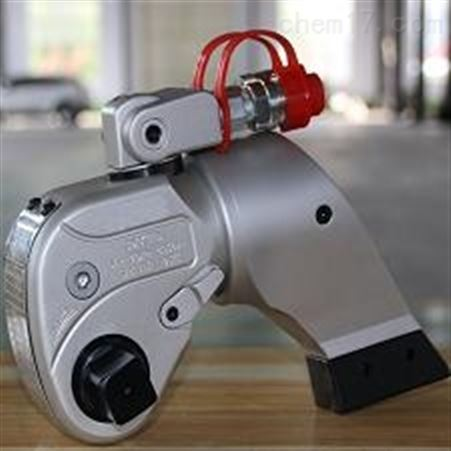

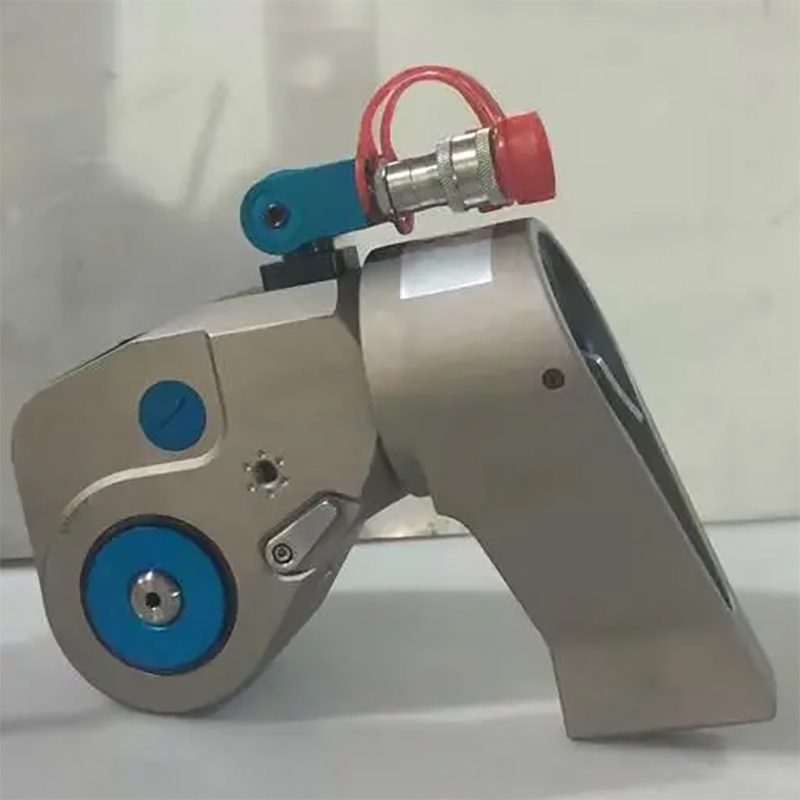

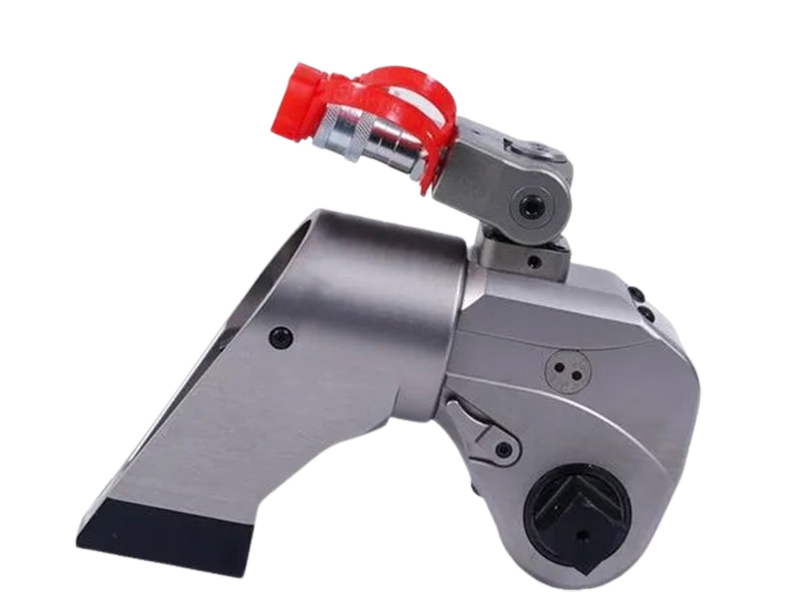

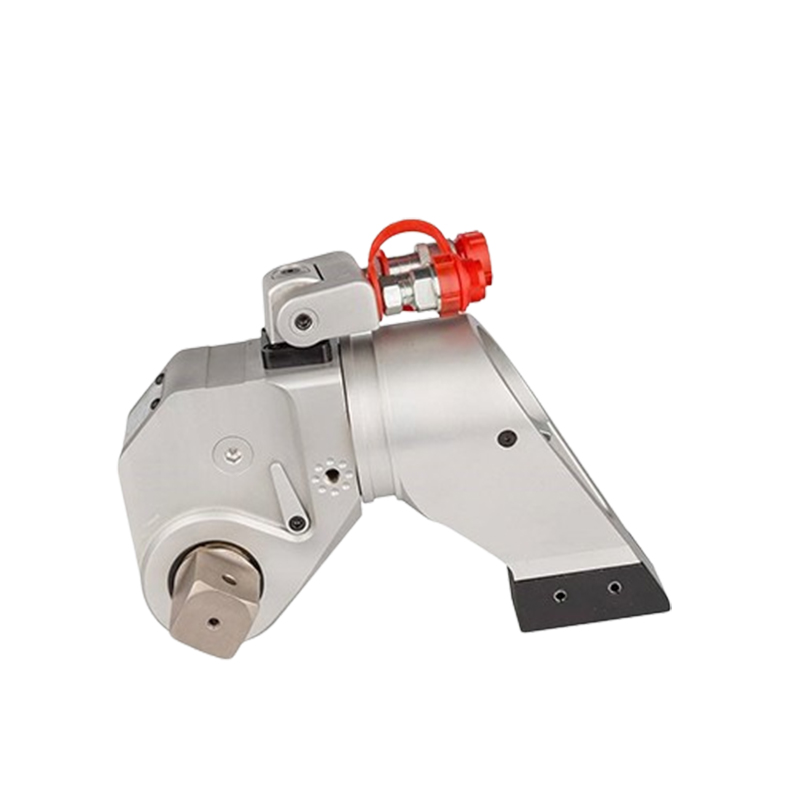

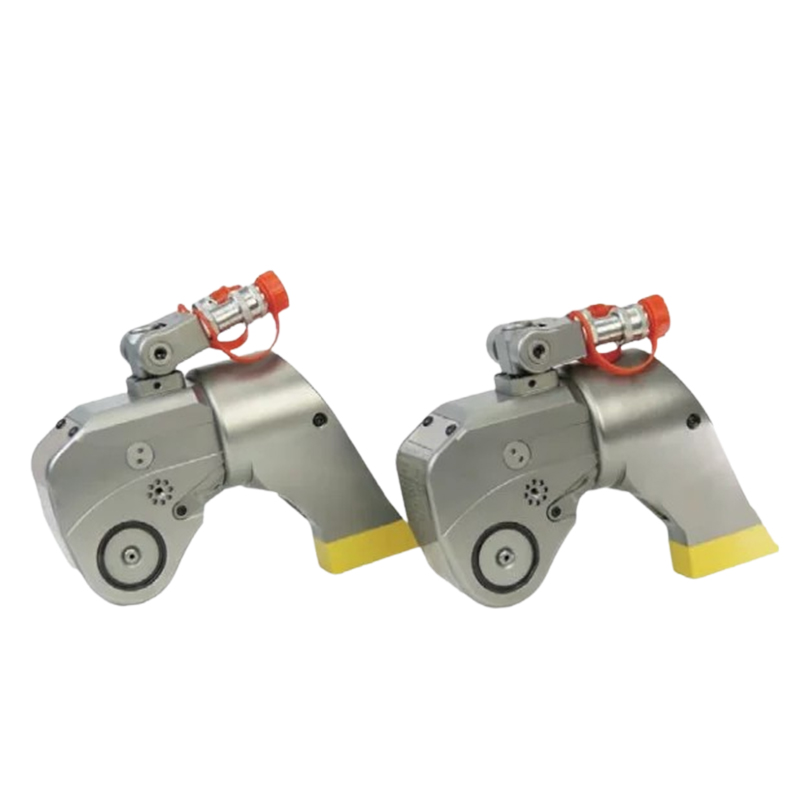

MXTA Driven hydraulic torque wrench
Features
-Its raw material is advanced space material (Aluminum-Titanium alloy) and super high strengthened alloy steel. The compact design intensifies the strength and toughness of the fuselage comprehensively.
-The 360° swivel coupler can be freely operated and allow easy access in all position.
-The trigger style lock can be pressed easily, and it may situate the reaction arm of 360° trimming style on the support freely.
-A precise ratchet is adopted with accuracy +3%

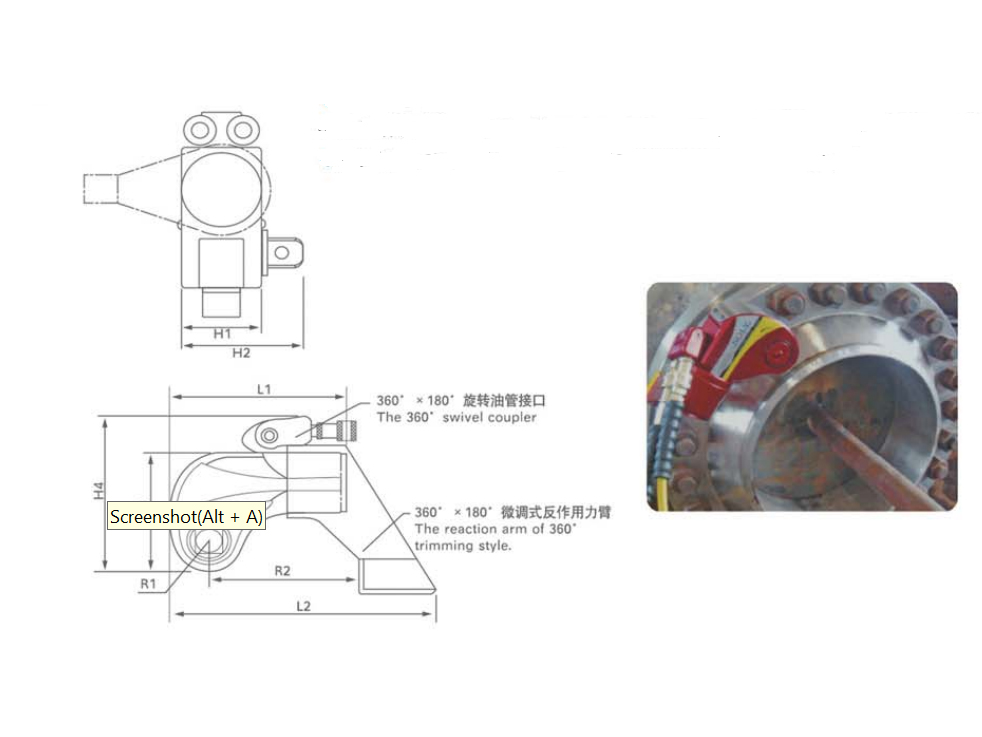

Technical parameters
| Model |
Range of torque |
Bolt size range |
Weight |
L1 |
L2 |
H1 |
H2 |
H3 |
H4 |
R1 |
R2 |
Square drive |
|
N.m |
m |
Kg |
||||||||||
| YAX-1MXTA |
183-1837 |
16-36 |
2 |
133.5 |
185.5 |
50 |
72 |
95.5 |
131 |
26 |
99 |
3/4’’ |
| YAX-3MXTA |
451-4512 |
22-48 |
4 |
169 |
242 |
68 |
95 |
127 |
176.5 |
34 |
134 |
1’’ |
| YAX-5MXTA |
752-7528 |
27-56 |
7 |
202.5 |
283.5 |
80 |
123 |
149 |
198.5 |
39 |
152 |
1-1/2’’ |
| YAX-8MXTA |
1078-10780 |
30-64 |
9.1 |
216 |
309 |
90 |
134 |
167 |
216.5 |
47 |
171 |
1-1/2’’ |
| YAX-10MXTA |
1551-15516 |
36-72 |
13.1 |
237.5 |
340.5 |
100 |
142 |
182 |
231.5 |
51 |
174 |
1-1/2’’ |
| YAX-20MXTA |
2666-26664 |
42-90 |
25 |
299.5 |
466.5 |
120 |
183 |
220 |
269.5 |
59 |
250.5 |
2-1/2’’ |
| YAX-25MXTA |
3472-34725 |
48-100 |
31 |
313 |
461 |
137 |
200 |
247 |
296.5 |
66 |
250.5 |
2-1/2’’ |
| YAX-35MXTA |
4866-48666 |
64-120 |
45 |
361.5 |
496.5 |
153 |
216 |
282 |
331.5 |
77 |
271 |
2-1/2’’ |
